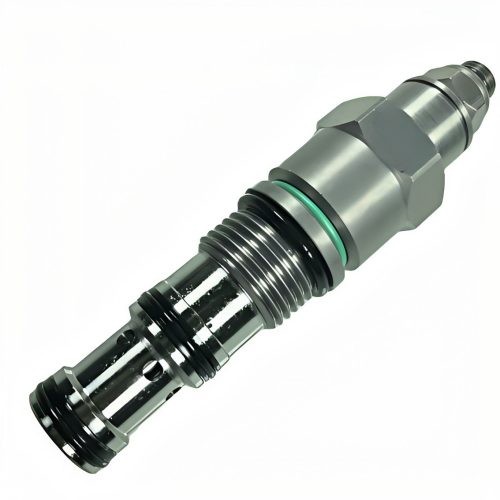

Hydraulic Counterbalance Valve

Our hydraulic counterbalance valve (also known as load holding valve or pilot-operated check valve) is a high-performance hydraulic control component designed for hydraulic systems with suspended loads. It effectively prevents load runaway, overspeed descent and sudden impact during operation, ensuring smooth, safe and controlled movement of lifting, boom and other load-bearing mechanisms. Manufactured with premium materials and precision machining, this cartridge-type balance valve delivers exceptional pressure resistance, zero leakage performance and long service life. We provide fully customized solutions, including various pressure ratings, flow rates, interface specifications and structures, to meet the unique control needs of different hydraulic systems and equipment. Widely used in construction machinery, lifting equipment, hydraulic stations and other industrial fields, it is an essential component to ensure load safety and system stability.

Key Features

1. Precise Load Control & Anti-Runaway: The optimized pilot-operated spool structure accurately controls the load lowering speed, effectively preventing load runaway, overspeed descent and shock, ensuring smooth and safe operation of the equipment.

2. Zero Leakage & High Pressure Resistance: Adopts advanced sealing structure and high-precision machining, ensuring zero leakage under high pressure, with high pressure bearing capacity (up to 35MPa/5000PSI), suitable for high-load hydraulic systems.

3. Adjustable Pressure Setting: Equipped with an adjustable pressure adjustment mechanism, allowing users to set the opening pressure according to load requirements, with flexible and convenient adjustment, adapting to different working conditions.

4. Robust & Durable Construction: Made of high-quality carbon steel or stainless steel, with surface heat treatment and anti-corrosion coating, it has excellent wear resistance, impact resistance and fatigue resistance, suitable for harsh industrial environments.

5. Cartridge Design for Easy Installation: Compact cartridge structure, easy to install and maintain, suitable for integrated hydraulic valve blocks and various hydraulic system layouts, saving installation space.

6. Wide Compatibility: Compatible with various hydraulic oils and fluids, suitable for different hydraulic systems and equipment, with stable performance in high and low temperature environments.

7. Fully Customizable Solutions: Support full customization of pressure rating, flow rate, thread interface, structure, adjustment mode and material, to meet special application requirements.

Custom Machining Services

We provide one-stop custom machining services for hydraulic counterbalance valves, to meet all your personalized hydraulic control needs:

• Custom Pressure & Flow: Custom opening pressure, pilot ratio, flow rate and pressure rating, to match different load and system requirements.

• Custom Material: Carbon steel, alloy steel, stainless steel, etc., to meet different corrosion resistance and strength requirements.

• Custom Interface & Thread: Standard thread (SAE, NPT, BSP, metric thread, etc.), flange connection, etc., compatible with global hydraulic system standards.

• Custom Structure & Function: Direct-acting, pilot-operated, one-way, two-way, with/without check valve, etc., to meet different control needs.

• Custom Adjustment Mode: Screw adjustment, knob adjustment, locknut design, etc., for easy on-site adjustment.

• Custom Surface Treatment: Nitriding, quenching, zinc plating, nickel plating, etc., to improve wear resistance and corrosion resistance.

• Custom Batch & Lead Time: Support small batch trial production and mass production, with flexible lead time to meet your project schedule.

Technical Advantages

• Advanced Hydraulic Design: The unique spool and pilot structure design ensures stable control, low pressure loss and high efficiency, improving system performance.

• Precision Machining: Adopt CNC precision machining technology to ensure high dimensional accuracy and tight tolerance, ensuring reliable sealing and stable operation.

• Strict Quality Control: Each product undergoes strict pressure testing, leakage testing, fatigue testing and performance calibration, complying with international hydraulic industry standards, ensuring stable and reliable performance.

• Professional Engineering Support: Our engineering team has rich experience in hydraulic valve design and machining, providing professional design suggestions and technical support for your custom projects.

Application Scenarios

• Construction Machinery: Excavators, cranes, loaders, boom trucks, aerial work platforms, etc.

• Lifting & Material Handling Equipment: Forklifts, lift tables, hoists, cranes, etc.

• Industrial Hydraulic Systems: Hydraulic presses, hydraulic stations, machine tools, etc.

• Other Industrial Fields: Agricultural machinery, marine equipment, mining machinery, new energy equipment, etc.

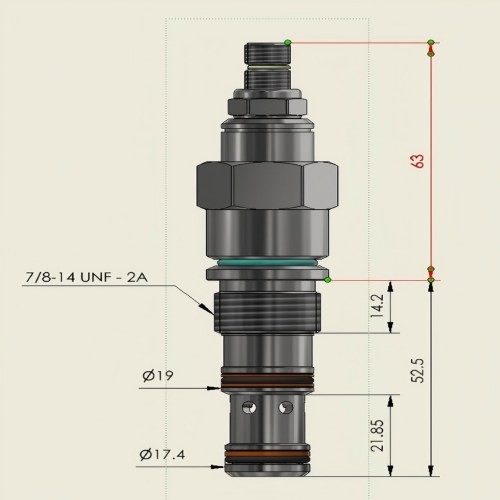

Product Structure

• Spool & Sleeve: Precision-machined spool and sleeve, with high surface finish, ensuring smooth movement and zero leakage.

• Pilot Control Mechanism: Pilot-operated structure, realizing load control and anti-runaway function.

• Sealing System: High-performance sealing rings and sealing structure, ensuring zero leakage under high pressure and long-term operation.

• Adjustment Mechanism: Adjustable pressure screw, convenient for setting opening pressure according to load.

• Threaded Body: Standard or custom threaded interface, easy to install in hydraulic valve blocks and pipelines.

Custom Order Process

1. Inquiry & Requirement Confirmation: Provide your product requirements (pressure, flow, interface, material, quantity, etc.) or drawings.

2. Design & Quotation: Our engineering team will evaluate the feasibility, provide design suggestions and quote the price.

3. Sample Confirmation: Produce samples for your inspection and performance test confirmation, and adjust according to your feedback.

4. Mass Production: After sample confirmation, arrange mass production, and strictly control the quality during the production process.

5. Inspection & Delivery: Conduct full inspection of the products (pressure test, leakage test, performance test, etc.), and deliver them after passing the inspection, with complete quality documents.

6. After-sales Service: Provide long-term after-sales technical support and product warranty service.
