Hydraulic Cylinder Bidirectional Pressure Holding Valve

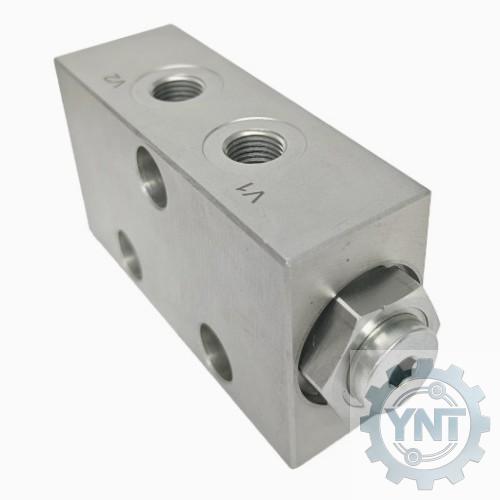

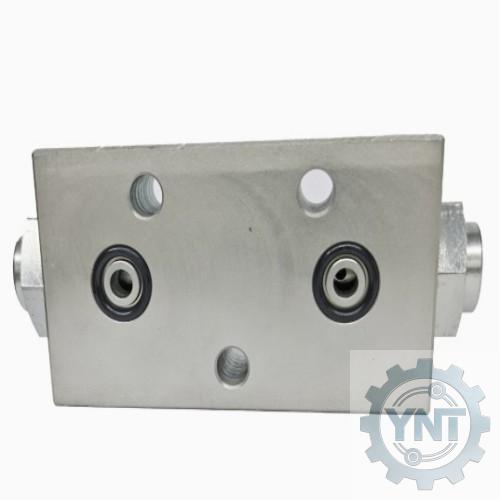

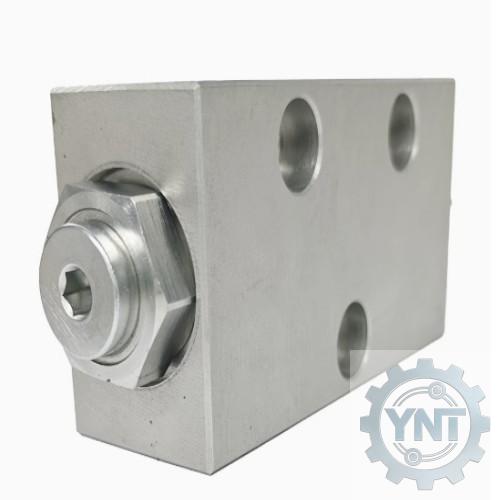

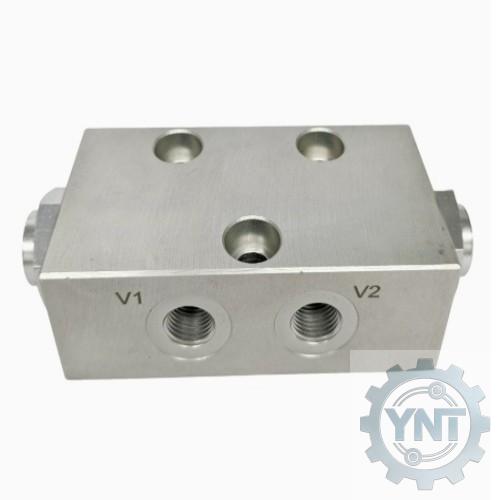

Hydraulic Cylinder Pressure Holding Valve (Bidirectional Hydraulic Lock) is a safety valve designed for load holding of hydraulic cylinders. When the hydraulic pump stops supplying oil, the one-way spool inside the valve closes instantly, sealing the hydraulic oil in both cylinder chambers and locking the cylinder position. It avoids cylinder sliding down caused by load gravity, acting as a core safety component for lifting and supporting hydraulic systems.The valve body is precision machined from forged aluminum alloy with smooth flow channel and low pressure drop. Optimized sealing design ensures minimal internal leakage and stable pressure holding for a long time.Marked ports V1 and V2 connect to the rodless and rod chamber of hydraulic cylinder. Easy to mount, it can be installed directly on cylinder end or manifold block.

Features

1.Bidirectional locking & pressure holding, effectively prevent cylinder sinking or drifting.

2.High-strength aluminum alloy valve body, lightweight and impact resistant.

3.Precision spool, low internal leakage for long-time pressure maintenance.

4.Compact structure, simple installation, compatible with various hydraulic systems.

5.Designed for static load locking, safety protection for construction and lifting machinery.

Application

Crane outriggers, aerial work platforms, hydraulic lifts, dump equipment, machine tool clamping cylinders, support cylinders for engineering vehicles and other hydraulic systems.

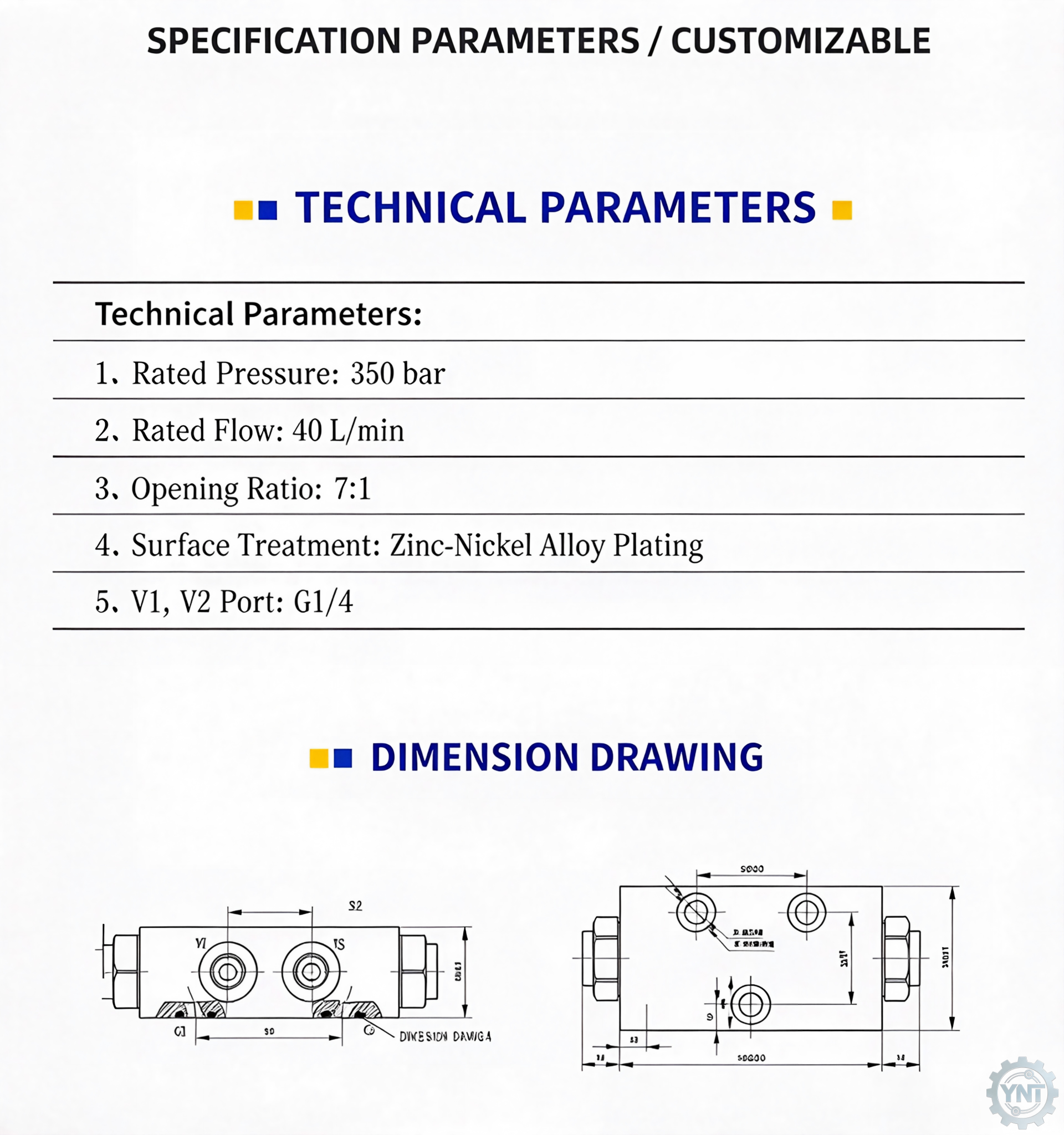

Technical Specification

Medium: anti-wear hydraulic oilMax working pressure: up to 35MPaFunction: double pilot operated check, load pressure holding & anti-fall self-locking
