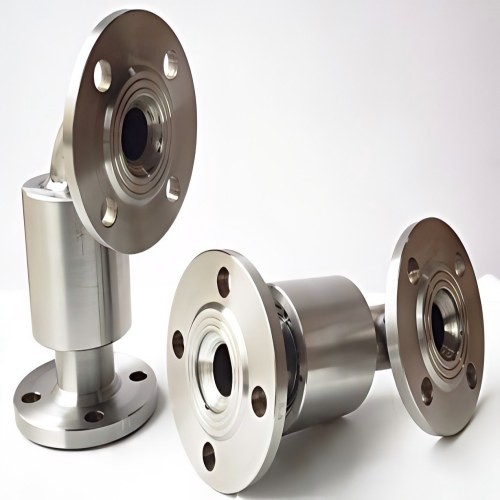

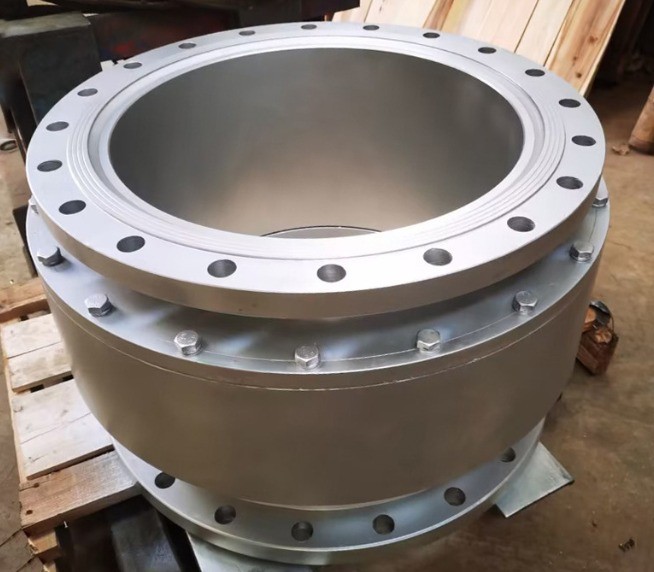

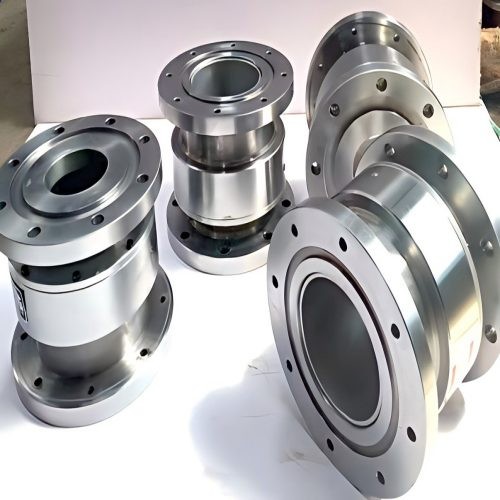

Universal Swivel Joint

Our universal swivel joint (also known as rotary union) is a high-performance fluid connection component designed for rotating and swinging pipeline systems. It enables 360° unlimited rotation between fixed and rotating pipelines, effectively preventing pipeline winding, twisting and fatigue damage, ensuring continuous and stable transmission of hydraulic oil, water, steam, gas and other fluids. Manufactured with premium materials and precision sealing technology, this flange-type swivel joint delivers exceptional pressure resistance, zero leakage performance and long service life. We provide fully customized solutions, including various sizes, pressure ratings, flange standards, materials and structures, to meet the unique connection needs of different industrial equipment and working conditions. Widely used in construction machinery, metallurgical equipment, paper machinery, ships, hydraulic stations and other industries, it is an essential component for solving pipeline connection problems in rotating scenarios.

Key Features

1. 360° Unlimited Rotation: The optimized rotating structure enables smooth 360° rotation without dead angle, effectively solving pipeline winding and twisting, extending the service life of pipelines and equipment.

2. Zero Leakage Sealing Performance: Adopts advanced multi-stage sealing structure and high-performance sealing materials, ensuring zero leakage under high pressure and long-term rotation, preventing fluid loss and system contamination.

3. High Pressure & Wear Resistance: Made of high-strength stainless steel or carbon steel, with surface anti-corrosion treatment, it has excellent pressure bearing capacity (up to 40MPa/5800PSI) and wear resistance, suitable for harsh industrial environments.

4. Flange Connection Design: Standard flange interface (compatible with ANSI, DIN, GB, JIS and other flange standards), easy to install and disassemble, ensuring stable connection and convenient maintenance.

5. Wide Compatibility: Suitable for various fluids, including hydraulic oil, water, steam, gas, chemical fluids, etc., meeting the needs of different industrial systems.

6. Long Service Life & Low Maintenance: The precision-machined rotating pair and wear-resistant materials reduce friction and wear, achieving long service life and low maintenance frequency, reducing operating costs.

7. Fully Customizable Solutions: Support full customization of nominal diameter, pressure rating, flange standard, material, rotation angle and structure, to meet special application requirements.

Custom Machining Services

We provide one-stop custom machining services for universal swivel joints, to meet all your personalized connection needs:

• Custom Material: 304/316 stainless steel, carbon steel, alloy steel, etc., to meet different corrosion resistance and strength requirements.

• Custom Flange Standard: ANSI, DIN, GB, JIS, etc., compatible with global pipeline system standards.

• Custom Size & Specification: Support custom nominal diameter, pressure rating, rotation angle, overall length, etc., according to customer drawings or samples.

• Custom Sealing Structure: Custom sealing materials and structures for different fluids (high temperature, high pressure, corrosion resistance, etc.).

• Custom Structure: Straight-through, elbow, multi-channel, etc., to meet different installation space and flow requirements.

• Custom Surface Treatment: Polishing, passivation, zinc plating, nickel plating, etc., to improve corrosion resistance and service life.

• Custom Batch & Lead Time: Support small batch trial production and mass production, with flexible lead time to meet your project schedule.

Technical Advantages

• Advanced Sealing Technology: The unique sealing structure design ensures zero leakage under high-speed rotation and high pressure, with excellent stability.

• Precision Machining: Adopt CNC precision machining technology to ensure high dimensional accuracy and tight tolerance, ensuring smooth rotation and reliable sealing.

• Strict Quality Control: Each product undergoes strict pressure testing, rotation testing and leakage testing, complying with international industrial standards, ensuring stable and reliable performance.

• Professional Engineering Support: Our engineering team has rich experience in swivel joint design and machining, providing professional design suggestions and technical support for your custom projects.

Application Scenarios

• Hydraulic Systems: Hydraulic stations, construction machinery (excavators, cranes, loaders), hydraulic lifting equipment, etc.

• Metallurgical & Steel Industry: Steel rolling mills, continuous casting machines, metallurgical equipment, etc.

• Paper & Packaging Industry: Paper machines, packaging machinery, etc.

• Marine & Shipbuilding: Marine hydraulic systems, deck machinery, offshore equipment, etc.

• Other Industrial Fields: Chemical industry, petroleum, new energy equipment, agricultural machinery, aerospace, etc.

Product Structure

• Flange End: Standard or custom flange, easy to connect with pipelines and equipment, ensuring stable installation.

• Rotating Body: Precision-machined rotating pair, with wear-resistant materials, ensuring smooth 360° rotation.

• Sealing System: Multi-stage high-performance sealing structure, ensuring zero leakage under high pressure and rotation.

• Housing: High-strength stainless steel/carbon steel housing, with surface anti-corrosion treatment, pressure-resistant and durable.

Custom Order Process

1. Inquiry & Requirement Confirmation: Provide your product drawings, samples or detailed requirements (size, material, pressure, flange standard, quantity, etc.).

2. Design & Quotation: Our engineering team will evaluate the feasibility, provide design suggestions and quote the price.

3. Sample Confirmation: Produce samples for your inspection and confirmation, and adjust according to your feedback.

4. Mass Production: After sample confirmation, arrange mass production, and strictly control the quality during the production process.

5. Inspection & Delivery: Conduct full inspection of the products (pressure test, rotation test, leakage test, etc.), and deliver them after passing the inspection, with complete quality documents.

6. After-sales Service: Provide long-term after-sales technical support and product warranty service.
