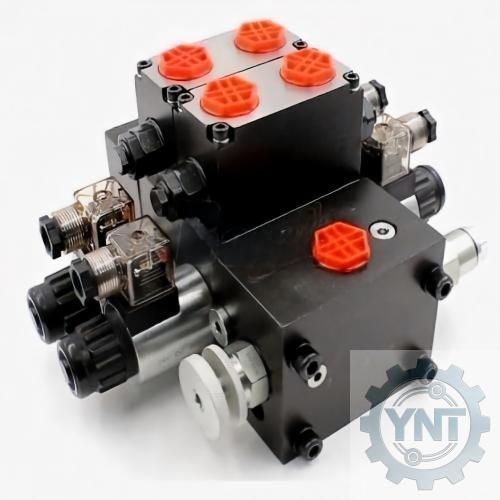

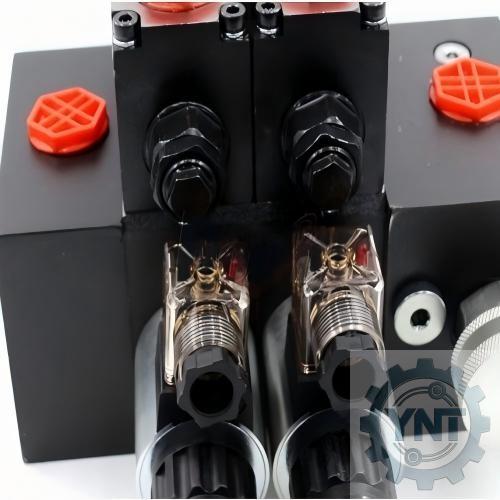

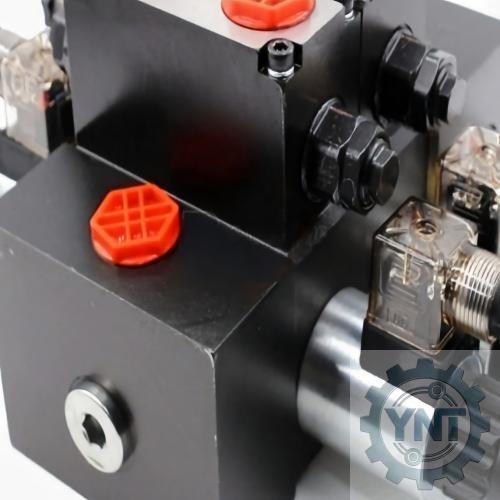

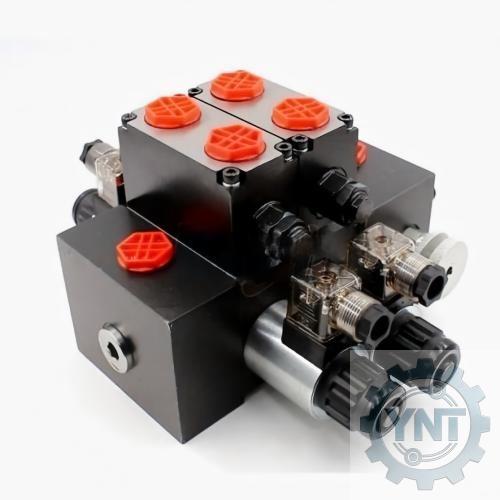

2‑section Solenoid Multi‑directional Valve

This integrated solenoid‑operated multi‑directional valve features a 2‑section valve block. Electromagnets drive spool shifting to independently control extension and retraction of two cylinders. Built‑in overflow valve enables system pressure adjustment. Integrated internal oil passages minimize external piping and leakage risks. Ideal for automatic hydraulic systems and small‑scale engineering machinery. Custom service is available for non‑standard requirements.

Key Features

   1.Integrated 2‑section valve block with built‑in oil circuits, compact design and low leakage risk.

   2.Solenoid‑driven spool reversal, supports remote electric control for automation systems.

   3.Built‑in overflow valve for system pressure adjustment and overload protection.

   4.Two‑section spool design, two cylinders operate independently without interference.

   5.Customizable: flow rate, pressure, solenoid voltage, port thread and mounting dimensions.

Applications

1. Automatic hydraulic equipment and hydraulic power units.

2. Small‑scale engineering machinery and special modified machines.

3. Agricultural machinery hydraulic systems.

4. Hydraulic units requiring electric‑controlled multi‑way reversing

Functions

1. Independent extension & retraction for two hydraulic cylinders.

2. Overflow pressure regulation and system overload protection.

3. Solenoid‑controlled reversing, compatible with PLC automation.

4. Independent operation for multiple cylinders.

Notes

   1.Keep hydraulic oil clean and install filters to prevent spool sticking.

   2.Confirm solenoid rated voltage and correct wiring to avoid coil damage.

   3.Do not operate beyond rated working pressure.

   4.Provide system pressure, flow, solenoid voltage and port thread for custom orders.
