Adjustable Hydraulic Manifold with Relief & Throttle Valves

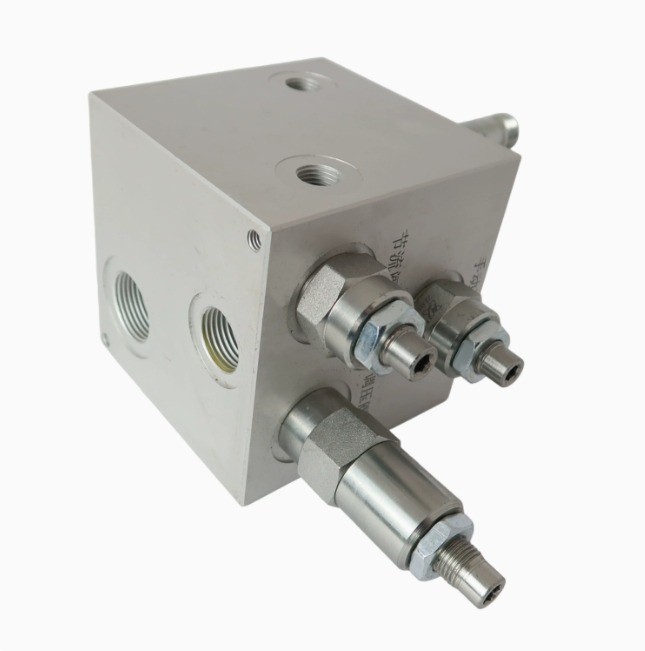

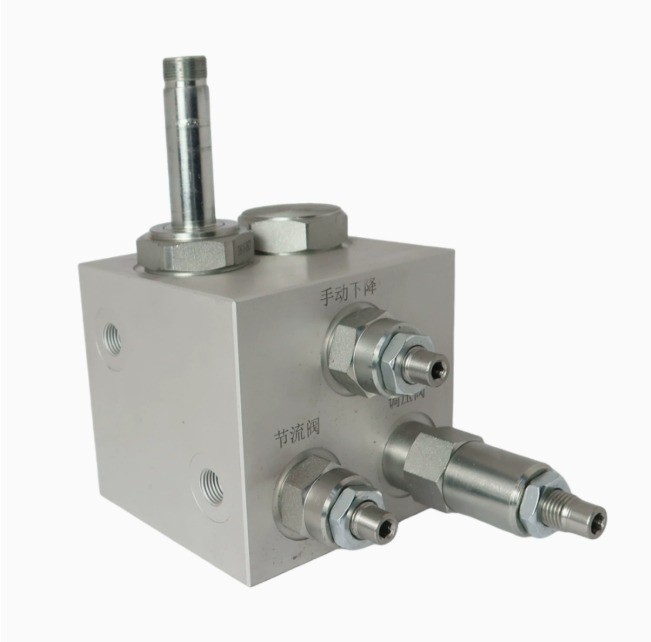

This integrated hydraulic manifold is a high-precision, pre-assembled fluid control solution engineered for hydraulic systems requiring precise pressure and flow regulation. CNC-machined from high-strength aluminum alloy, the block combines multiple hydraulic ports with heavy-duty pressure relief valves and adjustable flow restrictors into a single, compact assembly. This design eliminates complex external piping, reduces potential leak points, and delivers accurate, repeatable performance, making it ideal for industrial machinery, hydraulic power units (HPUs), and automated production lines.

Key Features & Advantages

✅ Integrated Regulation ValvesPre-fitted with pressure relief valves and adjustable throttle valves for centralized control of system pressure and flow.

✅ Precision CNC MachiningTight tolerance machining ensures accurate flow passages, minimal pressure loss, and leak-free operation.

✅ Space-Saving DesignConsolidates multiple control functions into one block, reducing installation space and simplifying system integration.

✅ Reduced Leak PointsEliminates external connections between individual components, significantly lowering the risk of fluid leaks.

✅ Easy AdjustmentFeatures user-friendly adjustment points for fine-tuning pressure and flow parameters to match specific application needs.

✅ Durable ConstructionHigh-strength aluminum alloy with a corrosion-resistant finish ensures long service life in harsh industrial environments.

Typical Specifications

Applications

• Industrial hydraulic machinery and equipment

• Hydraulic power units (HPUs)

• Automated production lines and automation systems

• Material handling and processing equipment

• Any hydraulic system requiring precise pressure and flow control

Why Choose Us?

As a professional manufacturer of hydraulic components, we specialize in designing and building custom hydraulic manifolds tailored to your exact specifications. Each manifold undergoes rigorous pressure testing and quality inspection to ensure reliable performance. Contact us today to discuss your project needs and request a custom quote!
