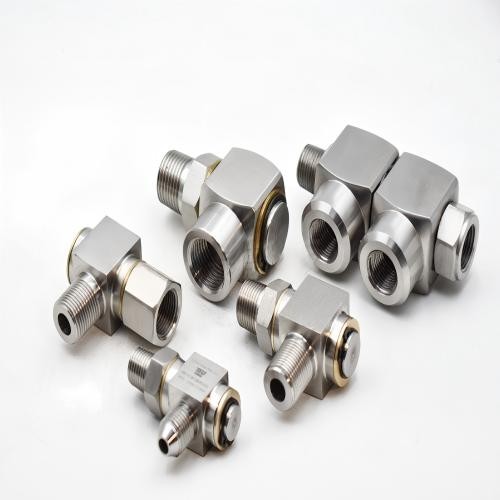

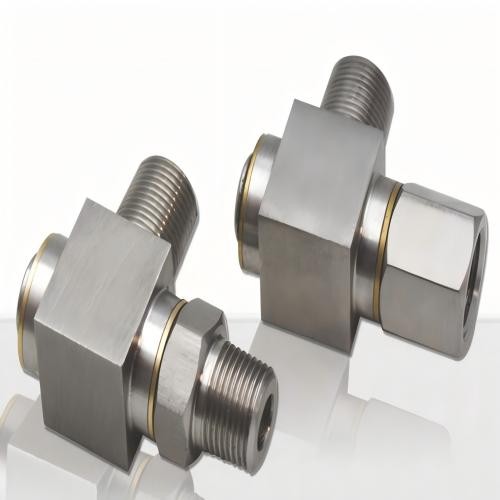

360° Hydraulic Swivel Joint

Our 360° hydraulic swivel joint (rotary union) is a precision-engineered component designed to transfer hydraulic fluid between stationary and rotating parts of heavy machinery. Featuring a robust stainless steel/steel construction and high-performance sealing elements, it allows continuous 360° rotation while maintaining leak-free performance under high pressure. Ideal for excavators, cranes, hydraulic power units, and rotating equipment, this swivel joint eliminates hose twisting, kinking, and torsion damage, significantly extending the service life of hydraulic hoses and improving operational safety. Customized sizes and thread types (BSP, NPT, metric) are available to meet diverse application requirements.

Key Features

✅ 360° Free Rotation: Enables continuous 360° rotation without torque transmission, completely avoiding hydraulic hose twisting, kinking and damage.
✅ High Pressure Resistance: Suitable for high-pressure hydraulic working conditions, with a rated pressure of up to 35MPa (5000PSI), meeting industrial-grade usage standards.
✅ Leak-Free Sealing: Adopts high-precision sealing structure and high-quality seal ring material, achieving zero leakage during rotation and ensuring system stability.
✅ Durable Material: The main body is precision-machined from stainless steel/carbon steel, wear-resistant and corrosion-resistant, suitable for harsh working conditions (such as construction sites, mines).
✅ Wide Compatibility: Suitable for various rotating hydraulic equipment such as excavators, cranes, hydraulic power units, and aerial work platforms, and can replace original accessories.

Common Specifications

Product Type	360° Hydraulic Swivel Joint / Rotary Union
Body Material	Stainless Steel / Carbon Steel
Seal Material	NBR/FKM (Oil-resistant, High-temperature resistant, Anti-aging)
Working Pressure	16-35MPa (2320-5000PSI, Customizable on demand)
Rotation Angle	Continuous 360° Rotation
Temperature Range	-20℃ ~ +120℃
Thread Type	BSP, NPT, Metric (M14×1.5, M22×1.5, etc., Customizable on demand)
Applicable Medium	Hydraulic oil, Emulsified liquid, Water-glycol and other hydraulic media

Application Scenarios

Construction Machinery: Excavators, cranes, loaders, rotary drilling rigs (core rotary connection).
Industrial Equipment: Hydraulic Power Units (HPU), hydraulic cylinders, hydraulic test benches.
Special Equipment: Aerial work platforms, mining machinery, marine hydraulic systems, agricultural machinery.

Customization Services

We provide one-stop customization services for hydraulic swivel joints:

Customize size, thread type, pressure rating, and material to match your specific equipment model.
Precision machining and strict quality inspection (pressure test, leak test) ensure reliable performance.
