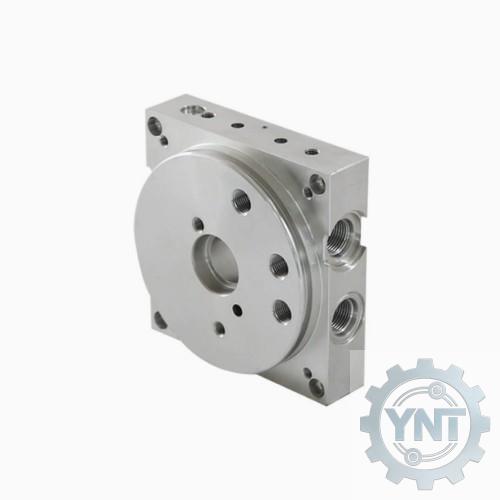

Custom Hydraulic Manifold Block

Key Features & Customization Capabilities

1.Full Customization Support:We provide one-stop customization solutions for your hydraulic manifold needs:

• 1-1 Circuit & Port Design: Custom oil passages, port configurations, and valve mounting patterns tailored to your hydraulic system’s flow and pressure requirements.

• 1-2 Material Options: Aluminum alloy, carbon steel, or stainless steel, selected based on your pressure rating, weight, and corrosion resistance needs.

• 1-3 Pressure Ratings: From low-pressure (10 bar) to high-pressure (up to 350 bar or higher), with optional pressure testing.

• 1-4 Surface Treatments: Anodizing, phosphating, blackening, or plating to enhance corrosion resistance and extend service life.

  2.High Precision CNC Machining:Using multi-axis CNC machining centers, our hydraulic manifold blocks are manufactured with tight tolerances (±0.01mm to ±0.05mm) and smooth internal oil passages. Precision drilling, milling, and tapping ensure accurate flow paths, minimal pressure loss, and compatibility with standard and custom valves (solenoid valves, relief valves, check valves, cartridge valves). Each manifold undergoes rigorous pressure and leak testing to guarantee reliable performance.

  3.Optimized Design for System Efficiency:By integrating multiple valve functions into a single block, our custom hydraulic manifolds simplify system layout, reduce installation space, and eliminate potential leak points from external piping. This compact design is ideal for hydraulic power units, construction machinery, industrial presses, and automation equipment where space and reliability are critical.

  4.Wide Range of Applications:

• Our custom hydraulic manifold blocks are widely used across industries:

• 4-1 Hydraulic power units (HPUs) and power packs

• 4-2 Construction and mobile machinery

• 4-3 Industrial injection molding and forging machines

• 4-4 Automation and robotic hydraulic systems

• 4-5 Marine and offshore hydraulic equipment

Our Custom Process

From your initial drawings, specifications, or application requirements, we provide end-to-end support: design review, 3D modeling, prototype manufacturing, testing, and mass production. Our engineering team works closely with you to optimize the manifold design for manufacturability, performance, and cost-effectiveness, ensuring your custom hydraulic manifold block meets all operational and delivery requirements.
