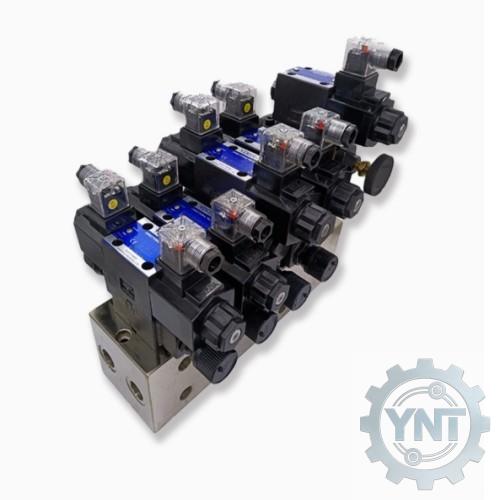

6 Spool Hydraulic Solenoid Directional Valve Bank

Key Features & Customization Capabilities

1.6 Independent Control Circuits:Each of the 6 solenoid directional valves operates independently, allowing you to control up to 6 different hydraulic functions (e.g., lifting, extending, rotating) from a single valve bank. We offer both 2-position and 4-position valve configurations (e.g., 4/3, 4/2) with various spool center functions (open center, closed center, tandem center) to match your specific system logic.

2.Reliable Solenoid Operation:The solenoid coils provide fast, consistent switching (typically 30–50ms response time) with options for AC or DC power supply (12V/24V/110V/220V). The valve spools are precision-machined for smooth operation, low friction, and minimal leakage, ensuring stable performance even under continuous high-cycle use.

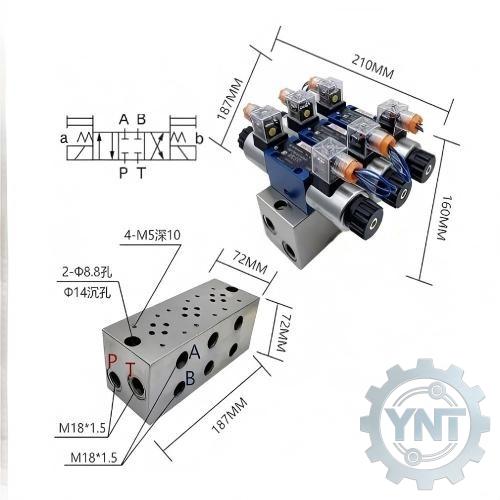

3.Compact & Integrated Manifold Design:The shared aluminum or steel manifold block eliminates complex external piping, reducing installation space, potential leak points, and assembly time. The compact layout is ideal for hydraulic power units, construction machinery, and automation equipment where space is limited.

4.Full Customization Support, We provide one-stop customization to meet your exact requirements:

• 4-1 Valve Configuration: Custom number of spools (2–10 spools available), valve type (normally open/closed), and center functions.

• 4-2 Pressure & Flow: Rated for pressures up to 31.5 MPa, with flow rates up to 40 L/min (customizable).

• 4-3 Material & Surface Treatment: Aluminum alloy, carbon steel, or stainless steel manifold blocks with anodizing, phosphating, or blackening for corrosion resistance.

• 4-4 Port Sizes & Threads: Standard or custom port sizes (BSPP, NPT, metric) to match your system piping.

  5.Wide Range of Applications,Our 6-spool hydraulic solenoid directional valve banks are widely used in:

• Hydraulic power units (HPUs) with multi-circuit control

• Construction machinery (e.g., excavators, loaders, cranes)

• Industrial automation and production lines

• Agricultural equipment and material handling machinery

Our Custom Process

From your initial specifications, drawings, or application requirements, we provide full support including design review, prototype manufacturing, pressure/leak testing, and mass production. Our engineering team ensures that every 6-spool solenoid valve bank meets your performance, compatibility, and delivery needs.
