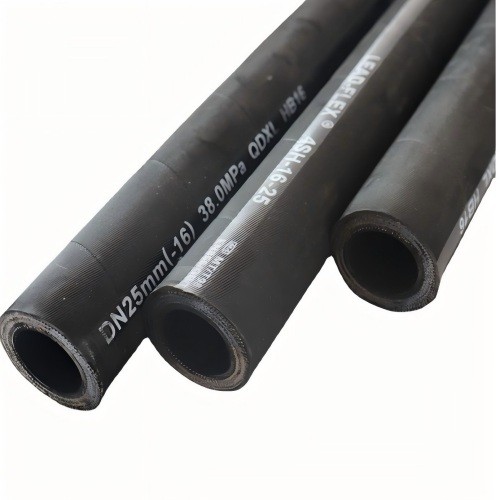

High Pressure Steel Wire Braided Hydraulic Hose

High pressure steel wire braided hydraulic hose is an indispensable fluid transmission component in hydraulic systems, widely used in construction machinery, mining, metallurgical manufacturing, port transportation, agricultural machinery and other fields. It undertakes the transmission of high-pressure hydraulic oil, directly affecting the working efficiency and safety of the hydraulic system. Our hydraulic hoses strictly comply with domestic and international standards such as GB/T 3683, SAE 100 R1/R2. We control the whole process from raw material procurement to production and processing, ensuring that each hose has excellent pressure bearing capacity and service life.

Product Structure

1. Inner Tube: Made of oil-resistant synthetic rubber (NBR/SBR), with excellent resistance to hydraulic oil and mineral oil, effectively preventing fluid corrosion and ensuring smooth fluid transmission.

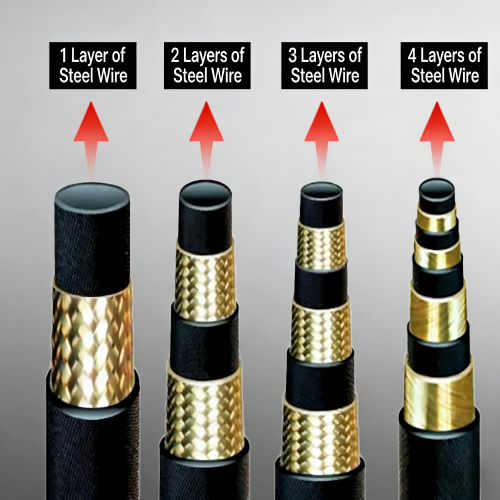

2. Reinforcement Layer: Adopts high-strength steel wire braided structure, divided into 1/2/4 layers of steel wire braiding according to pressure grade, providing super anti-burst and anti-pulse capacity. The maximum rated working pressure is up to 38.0MPa, and the burst pressure far exceeds the industry standard.

3. Outer Cover: Made of weather-resistant and wear-resistant synthetic rubber, with excellent anti-aging, anti-ozone, high and low temperature resistance, which can resist the erosion of outdoor harsh environment and mechanical wear, extending the service life of the hose.

Core Advantages

✅ Ultra-high Pressure Bearing Capacity: Rated working pressure covers 10MPa-38MPa, meeting the high-pressure requirements of different working conditions, eliminating the risk of pipe burst

✅ Full Size Coverage: Full series of DN6-DN51 diameters available, supporting customization of hydraulic hoses with special lengths and pressure grades

✅ Extreme Environment Adaptation: Working temperature from -40℃ to +100℃, can work stably in harsh environments such as severe cold, high temperature and humidity

✅ Long Service Life: High-quality rubber + high-strength steel wire structure, anti-pulse, anti-aging, service life far exceeds ordinary hoses

✅ Wide Compatibility: Suitable for all kinds of hydraulic systems, construction machinery, mining equipment, can be quickly assembled with standard hydraulic fittings

Application Scenarios

• Construction Machinery: Hydraulic systems of excavators, loaders, cranes, pump trucks, etc.

• Mining Equipment: Mining machinery such as shearers, roadheaders, hydraulic supports, etc.

• Metallurgical Machinery: High temperature and high pressure scenarios such as steel rolling equipment, metallurgical hydraulic stations, etc.

• Others: Port machinery, agricultural machinery, marine hydraulic systems, etc.
