Hydraulic Return Line Filter

Our hydraulic return line filter is a core filtration component for hydraulic systems, engineered to remove contaminants, metal particles and impurities from hydraulic oil during the return process. Installed directly on the hydraulic tank, it ensures the cleanliness of hydraulic oil, extends the service life of hydraulic components, and prevents system failures caused by oil pollution.

Key Features

1. High Filtration Performance: Adopts high-quality filter elements with multiple precision options (10μm, 20μm, 30μm, etc.), achieving efficient filtration of solid contaminants in hydraulic oil.

2. Integrated Safety Design: Equipped with a built-in bypass valve to prevent system pressure loss when the filter element is clogged; a visual clogging indicator is available to remind users of filter element replacement in time.

3. Large Dirt Holding Capacity: Optimized filter element structure provides large dirt holding space, reducing the frequency of filter element replacement and lowering maintenance costs.

4. Low Pressure Loss: Streamlined flow channel design minimizes pressure drop, ensuring stable operation of the hydraulic system without affecting system efficiency.

5. Robust Construction: Made of high-strength aluminum alloy and corrosion-resistant materials, suitable for harsh industrial environments such as high temperature, high pressure and dust.

6. Easy Installation & Maintenance: Compact structure, simple disassembly and assembly, convenient for on-site installation and regular filter element replacement.

Technical Advantages

• Complies with international hydraulic filtration standards, ensuring stable and reliable filtration performance.

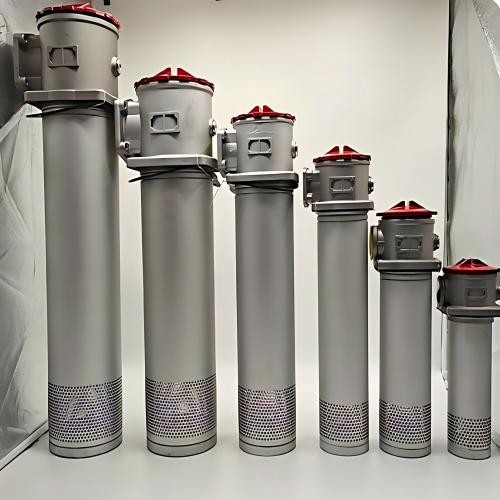

• Customizable specifications (flow rate, connection size, filter precision) to meet the needs of different hydraulic systems.

• Compatible with various hydraulic oils, lubricating oils and other industrial fluids.

Application Scenarios

• Construction machinery: Excavators, loaders, cranes, concrete pumps, etc.

• Industrial hydraulic systems: Hydraulic stations, hydraulic presses, injection molding machines, etc.

• Metallurgical & mining equipment: Steel rolling mills, mining machinery, lifting equipment, etc.

• Other industrial fields: Shipbuilding, petroleum, chemical industry, agricultural machinery, etc.

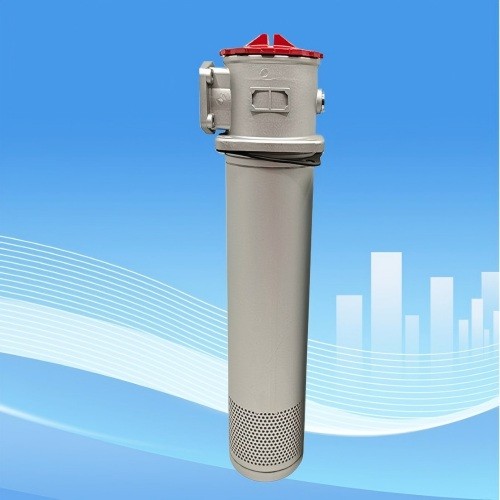

Product Structure

• Filter head: Aluminum alloy cast, with oil inlet/outlet, bypass valve and indicator interface.

• Filter housing: High-strength cylindrical structure, corrosion-resistant and pressure-resistant.

• Filter element: High-performance filter material, with large filtration area and high dirt holding capacity.

• Bottom suction screen: Pre-filters large particles to protect the filter element and extend its service life.

Maintenance Tips

• Regularly check the clogging indicator; replace the filter element immediately when the indicator is triggered.

• When replacing the filter element, clean the filter housing to avoid secondary pollution of hydraulic oil.

• Select the appropriate filter precision according to the requirements of the hydraulic system to ensure the best filtration effect.
