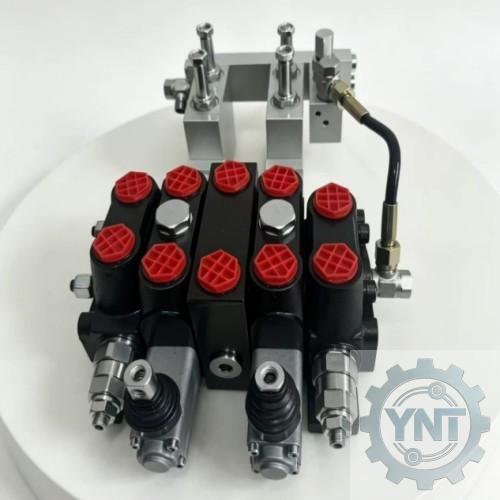

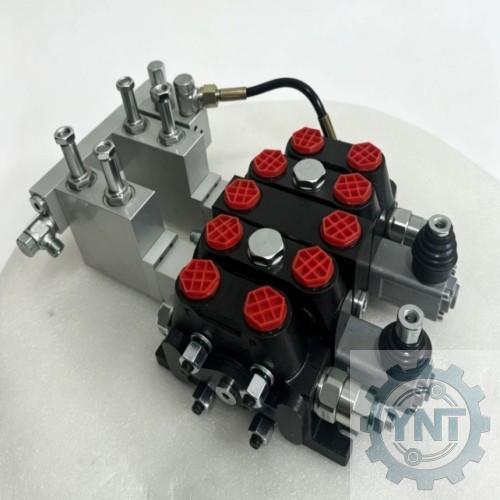

3/4 Spool Electro-Hydraulic Directional Control Valve, Solenoid Operated Multi-Way Valve

1. Product Overview

Electro-solenoid operated multi-way directional valve is an integrated hydraulic control component with modular spool body and electromagnetic driver. 3-spool & 4-spool versions are mainstream specifications. Solenoid energization/de-energization pushes spool for circuit shifting to remotely control hydraulic cylinders and motors, replacing traditional manual lever for automated hydraulic system. Modular splicing design allows flexible spool quantity adjustment, built-in relief valve for overpressure protection to avoid system breakdown. Heat-treated valve body improves wear resistance for outdoor harsh working conditions like sanitation and construction sites.

2. Key Product Features

2-1 Solenoid Electric Control: Standard 12VDC/24VDC coil for remote electric control, ideal for automatic vehicle refitting; optional emergency manual override for operation when power cut off.

2-2 Modular Spool Design: Customizable spool sections from 1 to10, 3/4 sections in stock for quick delivery.

2-3 Built-in Overload Relief Valve: Each spool equipped with relief function to release extra pressure automatically, protect hydraulic cylinder and power unit.

2-4 Low Internal Leakage: Precision ground spool plus high-quality oil-resistant seals, minimizing leakage to reduce energy loss.

2-5 Durable Valve Body: Phosphated cast iron housing with anti-rust coating, good contamination resistance for dirty working environment.

3. Custom Machining Service

• 3-1 Custom Spool Quantity: 1~10 sections available, 3/4 spool ready stock;

• 3-2 Custom Hydraulic Parameters: Working pressure 16~31.5MPa, flow range 25~120L/min;

• 3-3 Custom Electrical Parts: 12V/24V DC solenoid, optional emergency manual lever;

• 3-4 Custom Port Thread: BSP, NPT, Metric female thread, custom manifold mounting structure;

• 3-5 Custom Extra Function: Integral load holding valve, dual hydraulic lock, inlet flow divider as required;

• 3-6 Custom Material & Finish: Ductile iron or aluminum alloy valve body with customized surface treatment.

4. Application Range

Sanitation garbage truck, hook lift truck, compact waste equipment, aerial work platform, mini loader, garden machinery, mining small equipment, modified agricultural hydraulic machines.

5. Custom Order Process

5-1 Customer submit working condition data: required pressure, flow, spool number, coil voltage and installation dimension;

5-2 Technical team design hydraulic layout and provide quotation;

5-3 Prototype production & performance test for customer confirmation;

5-4 Mass production after sample approval, full pressure & leakage inspection before shipment;

5-5 Packing with user manual, lifetime technical after-sales support.
