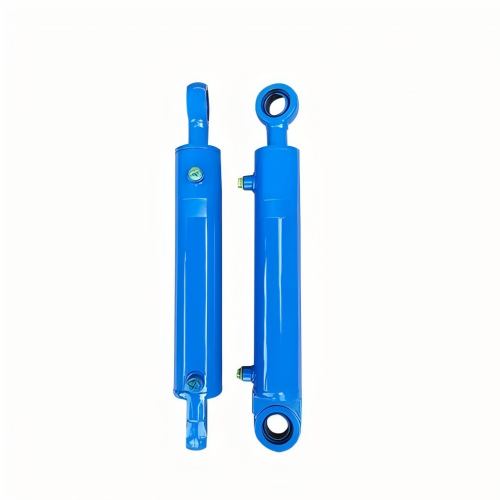

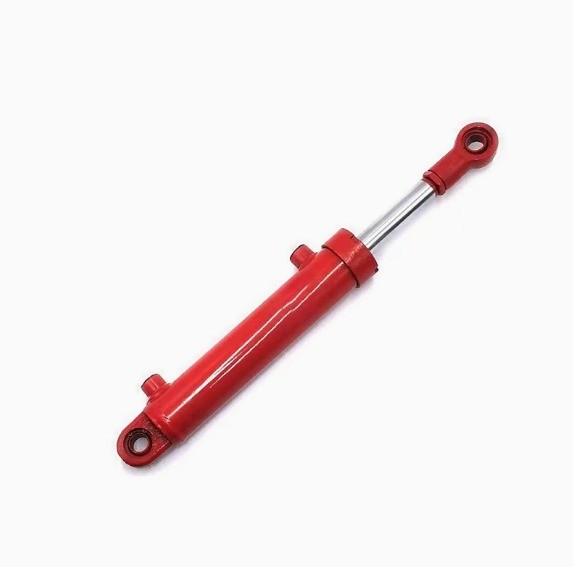

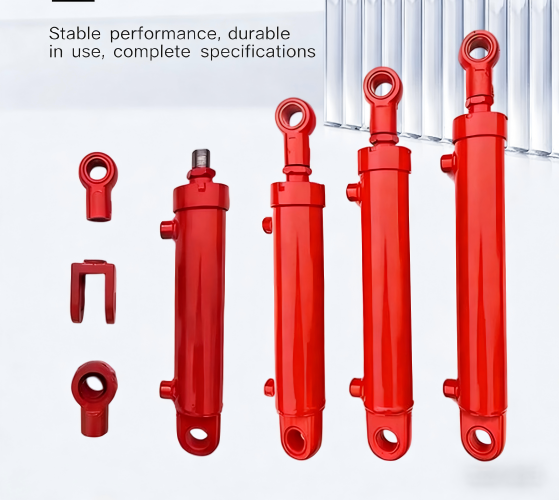

Double Acting Hydraulic Cylinder

This double acting hydraulic cylinder is manufactured from high-strength steel, offering excellent compressive strength and durability. Featuring clevis eyes (trunnion mounts) at both ends, it allows for flexible articulation and easy installation into various complex mechanical structures. Utilizing a double acting mechanism, this cylinder can input hydraulic pressure on both sides of the piston, thereby providing powerful thrust and pull in both the extension and retraction directions, achieving efficient and Type: Welded Hydraulic Cylinder / Tie Rod Hydraulic Cylinder (based on structure)

Mounting Style: Eye-to-Eye Mounting

Working Pressure: 16MPa / 2500PSI (customizable)

Bore Size: 40mm-100mm (customizable)

Rod Diameter: 20mm-50mm (customizable)

Stroke Length: 50mm-1000mm (customizable)

Material: High-strength Steel Tube, Hard Chrome Plated Piston Rod

Surface Treatment: Anti-corrosion Red Paint / Custom Color

Seal Kit: NBR / PU High-performance Seals (leak-proof, durable)

Application: Widely used in construction machinery, agricultural equipment, forklifts, trailers, mining machinery and other hydraulic systems.

Custom Service: OEM & ODM supported, we can design and produce according to your drawings or requirements.

Advantages:

1. High precision processing, stable performance, long service life.

2. Good sealing performance, no oil leakage under high pressure.

3. Anti-rust and anti-corrosion treatment, suitable for harsh working environments.

4. Strict quality control, each cylinder is pressure tested before delivery.
