Long Stroke Hydraulic Cylinder

1. Product Overview

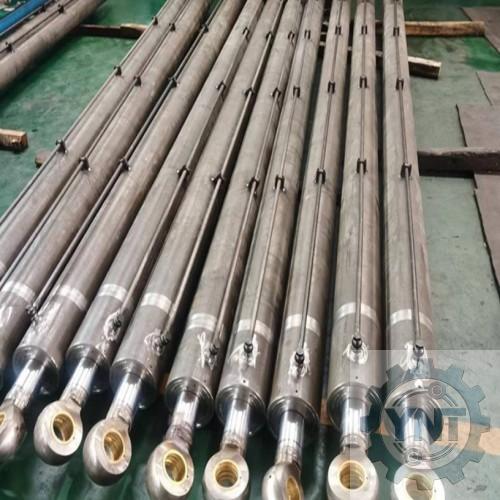

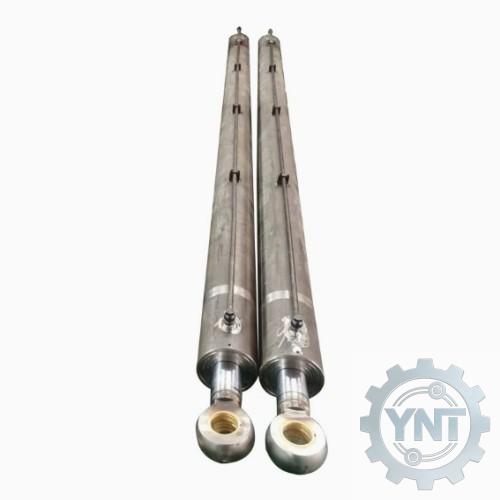

Long stroke hydraulic cylinders are specially designed for heavy hydraulic machinery requiring ultra-long telescopic travel. Double eye pivot mounting adapts slight angle deviation during lifting, offsetting lateral force effectively to prevent one-sided rod wear and seal leakage. The barrel adopts precision honed seamless steel tube with ultra-smooth inner wall, matched with thick hard chrome plated piston rod featuring excellent tensile and bending resistance for continuous heavy-load long-distance reciprocating movement. External sensor tubing channel is reserved on cylinder body to install displacement sensors for precise stroke feedback. Built-in hydraulic cushions at both ends slow down movement automatically at stroke limits to absorb impact, protect mechanical structures and extend cylinder service life greatly. Standard rated pressure 21MPa/31.5MPa, customized high-pressure version up to 42MPa. Widely matched with cranes, aerial lifts, mining equipment and large lifting machinery.

2. Key Product Advantages

Ultra-Long Stable Telescopic Stroke: Customizable overall length, built-in wear-resistant guide rings ensure smooth extension & retraction without shaking or crawling.

Thickened Wear-Resistant Main Structure: Precision honed seamless barrel + thick chrome piston rod, strong bending resistance and high pressure endurance for continuous heavy loads.

Double Eye Pivot Anti-Side-Load Design: Integral cast steel double eye end, uniform force distribution, self-adaptive swing angle to reduce seal abrasion.

Built-In Dual End Cushions: Automatic deceleration at stroke ends to cut impact noise and avoid rigid mechanical collision.

Reserved Integrated Sensor Pipeline: External sensor tube channel integrated on cylinder body, compatible with displacement sensors for automatic precise control.

High-Performance Composite Sealing System: PU dust wiper + NBR/FKM combined oil seals, wide temperature resistance and anti-pollution, long-term leak-proof for harsh outdoor working conditions.

Full Non-Standard Customization: Stroke, bore, rod diameter, pressure grade, eye size and port thread all adjustable per demand.

3. Custom Machining Services

• Custom Stroke & Dimensions: Ultra-long total stroke optional, customized barrel bore, rod diameter, eye hole size and mounting center distance;

• Custom Pressure Grade: Standard 21MPa, 31.5MPa, reinforced high-pressure version up to 42MPa;

• Custom Mounting Structure: Double eye, single eye, ball joint, flange, central trunnion mounting available;

• Custom Sensor Function: External sensor tube channel reserved, built-in magnetostrictive displacement sensor structure;

• Custom Seals for Working Conditions: Normal temp NBR, high temp FKM, low-temperature weatherproof seals for dusty, humid mining environment;

• Custom Surface Treatment: Anti-rust blackening barrel, extra-thick chrome rod, quenched wear-resistant eye ends;

• Custom Oil Port Interface: BSP, NPT, metric thread, adjustable inlet/outlet up/side mounting position.

4. Application Fields

Telescopic boom cylinders for aerial work platforms, luffing & extension cylinders for truck cranes, main lifting cylinders for large scissor lifts, underground mining hydraulic equipment, special heavy vehicles, marine lifting equipment, heavy hydraulic lifting machinery.

5. Custom Order Process

Submit working parameters: required total stroke, lifting load, system working pressure, mounting center distance and space limitation;

Engineers check bending strength and thrust data, provide cylinder design drawing and detailed quotation;

Prototype production after drawing confirmation, full performance tests including pressure resistance, reciprocating fatigue and leakage inspection;

Mass production, 100% pressure test and reciprocating running-in inspection for finished cylinders;

Delivery packed with installation drawings and spare seal kits, lifelong technical after-sales support.
