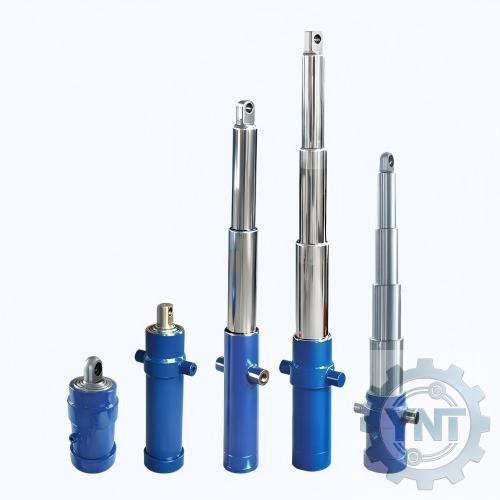

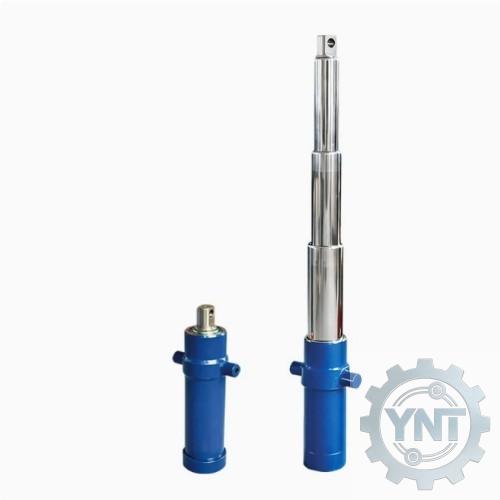

Custom Telescopic Hydraulic Cylinder

Key Features & Customization Capabilities

1.Multi-Stage Design for Compact & Long Stroke

The telescopic design features multiple nested cylinder stages that extend sequentially, achieving a long stroke with a significantly shorter retracted length compared to standard single-stage cylinders. This makes them perfect for applications like dump truck beds, where the cylinder must fit in the chassis when retracted but extend fully to tip the bed. We offer configurations from 2-stage to 5-stage designs to match your stroke and space requirements.

2.Heavy-Duty Construction for Industrial Use

• High-strength seamless steel tubes and hard chrome-plated piston rods ensure resistance to wear, corrosion, and heavy loads.

• Precision-sealed components prevent leakage under continuous high-pressure operation (rated up to 250–350 bar).

• Robust mounting options (trunnion, clevis, pin mount) ensure secure installation and stable operation under dynamic loads.

  3.We provide comprehensive customization to meet your exact requirements

• 3-1 Stage & Stroke: Custom number of stages (2–5), total extended stroke, and retracted length tailored to your equipment.

• 3-2 Pressure & Load: Rated working pressure, bore sizes, and lifting capacities matched to your application.

• 3-3 Mounting Styles: Trunnion, clevis, flange, or custom mounting configurations for seamless integration.

• 3-4 Special Features: Cushioning systems for controlled deceleration, optional locking valves for load holding, and corrosion-resistant coatings for outdoor use.

  4.Our custom telescopic hydraulic cylinders are widely used in

• Dump trucks, tipper trailers, and refuse trucks

• Lifting equipment (scissor lifts, aerial work platforms)

• Agricultural machinery (trailers, harvesters)

• Industrial material handling and construction equipment

Our Custom Process

From your initial specifications, drawings, or application requirements, we provide end-to-end support including design review, prototype manufacturing, pressure/leak testing, and mass production. Our engineering team ensures that every custom telescopic hydraulic cylinder meets your performance, compatibility, and safety standards.
