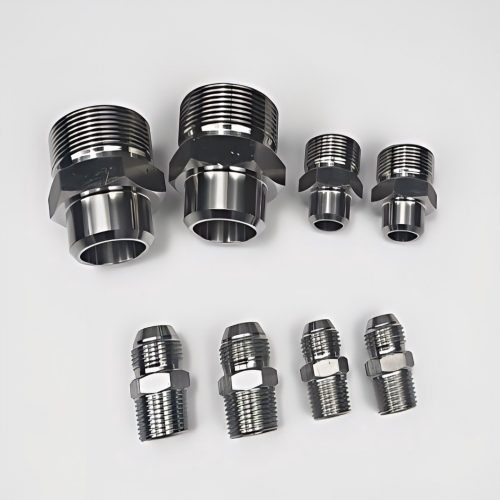

Stainless Steel Hydraulic Fitting (Custom Machining)

Our custom stainless steel hydraulic hose fittings are high-performance fluid connection components designed for hydraulic systems, fluid transmission lines and pressure test applications. Manufactured with premium 304/316 stainless steel and advanced CNC precision machining, these fittings deliver exceptional strength, corrosion resistance and sealing reliability. We provide fully customized solutions, including various structures (straight, elbow, hose barb, threaded, etc.), specifications, thread standards and surface treatments, to meet the unique connection needs of different hydraulic systems, industrial equipment and special working conditions. As a core component of hydraulic systems, our hydraulic fittings ensure zero leakage, stable connection and long service life, widely used in construction machinery, hydraulic stations, ships, chemical industry, food and medical industries.

Key Features

1. Premium Stainless Steel Material: Made of high-quality 304/316 stainless steel, with excellent corrosion resistance, rust resistance and high temperature resistance, suitable for harsh environments such as marine, chemical and high humidity, and can also meet the hygiene requirements of food and medical industries.

2. Precision CNC Machining: Adopt advanced CNC machining technology to ensure high dimensional accuracy, tight tolerance and smooth surface, ensuring perfect fit with hydraulic hoses and pipelines, realizing zero leakage connection.

3. Fully Customizable Solutions: Support full customization of product structure (straight, 45°/90° elbow, hose barb, JIC/AN/NPT/BSP threaded, etc.), size, thread standard, wall thickness and surface treatment, to meet the special needs of non-standard equipment and special working conditions.

4. High Pressure & Fatigue Resistance: Optimized structural design and high-strength material, with high pressure bearing capacity and excellent fatigue resistance, suitable for high-pressure hydraulic systems, withstanding long-term vibration and impact without loosening or leakage.

5. Wide Compatibility: Compatible with various hydraulic hoses, rubber tubes, steel pipes and fluid media (hydraulic oil, water, gas, chemical fluids, etc.), suitable for various hydraulic systems and industrial equipment.

6. Easy Installation & Maintenance: Standardized interface design, easy to install and disassemble, no special tools required, reducing installation and maintenance costs.

7. Strict Quality Control: Each product undergoes strict pressure testing, dimensional inspection and surface quality inspection to ensure stable and reliable performance, complying with international hydraulic industry standards.

Custom Machining Services

We provide one-stop custom machining services for hydraulic hose fittings, to meet all your personalized connection needs:

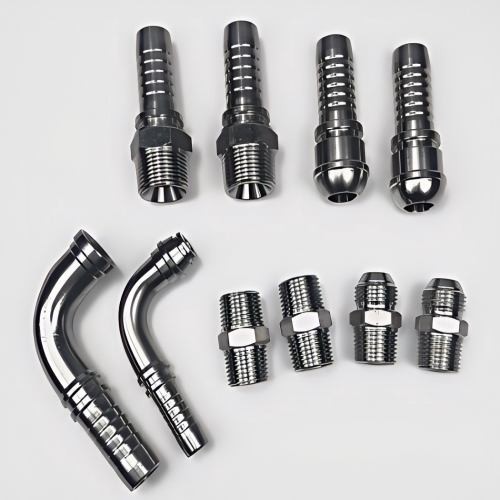

• Custom Structure: Straight fittings, elbow fittings (45°, 90°, 180°), hose barb fittings, threaded fittings, flange fittings, quick connect fittings, test point fittings, etc.

• Custom Material: 304 stainless steel, 316 stainless steel, carbon steel, alloy steel, etc., to meet different corrosion resistance and strength requirements.

• Custom Thread Standard: JIC, AN, NPT, BSP, BSPT, metric thread, etc., compatible with global hydraulic system standards.

• Custom Size & Specification: Support custom inner diameter, outer diameter, thread size, length, wall thickness, etc., according to customer drawings or samples.

• Custom Surface Treatment: Polishing, passivation, zinc plating, nickel plating, etc., to improve corrosion resistance and appearance.

• Custom Batch & Lead Time: Support small batch trial production and mass production, with flexible lead time to meet your project schedule.

Technical Advantages

• Advanced Machining Equipment: Equipped with high-precision CNC lathes, milling machines and testing equipment, ensuring the machining accuracy and consistency of each product.

• Professional Engineering Team: Our engineering team has rich experience in hydraulic fitting design and machining, providing professional design suggestions and technical support for your custom projects.

• Strict Quality Assurance: Implement ISO 9001 quality management system, with complete testing procedures, ensuring that each product meets customer requirements and industry standards.

• Cost-Effective Solutions: Optimize the production process to provide high-quality custom hydraulic fittings at competitive prices, reducing your overall cost.

Application Scenarios

• Hydraulic Systems: Hydraulic stations, hydraulic presses, construction machinery (excavators, loaders, cranes), etc.

• Industrial Equipment: Machine tools, injection molding machines, metallurgical equipment, mining machinery, etc.

• Marine & Shipbuilding: Marine hydraulic systems, ship pipeline connections, offshore equipment, etc.

• Chemical & Petroleum: Chemical pipeline connections, oil transmission equipment, etc.

• Food & Medical: Food processing equipment, medical devices, sanitary fluid systems, etc.

• Other Fields: New energy equipment, agricultural machinery, aerospace, etc.

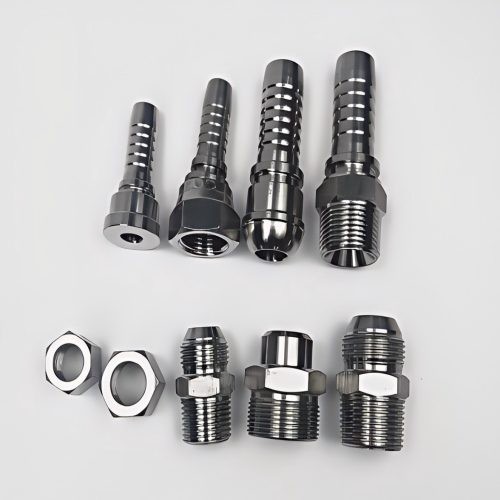

Product Structure

• Hose Barb End: Multi-stage hose barb design, firmly connected with hydraulic hose, ensuring no leakage under high pressure.

• Threaded End: Standard or custom thread, with high machining accuracy, ensuring tight connection with pipelines or equipment.

• Elbow Body: Optimized flow channel design, reducing pressure loss, suitable for limited space installation.

• Hexagonal Nut: Convenient for tool tightening, ensuring installation torque and connection stability.

• Sealing Surface: Precision-machined sealing surface, matched with sealing ring or metal sealing, ensuring zero leakage.

Custom Order Process

1. Inquiry & Requirement Confirmation: Provide your product drawings, samples or detailed requirements (structure, size, material, quantity, etc.).

2. Design & Quotation: Our engineering team will evaluate the feasibility, provide design suggestions and quote the price.

3. Sample Confirmation: Produce samples for your inspection and confirmation, and adjust according to your feedback.

4. Mass Production: After sample confirmation, arrange mass production, and strictly control the quality during the production process.

5. Inspection & Delivery: Conduct full inspection of the products, and deliver them after passing the inspection, with complete quality documents.

6. After-sales Service: Provide long-term after-sales technical support and product warranty service.
