Custom Hydraulic Manifold Block

Product Overview

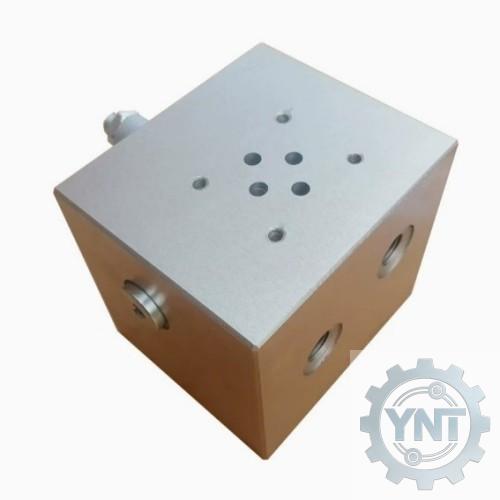

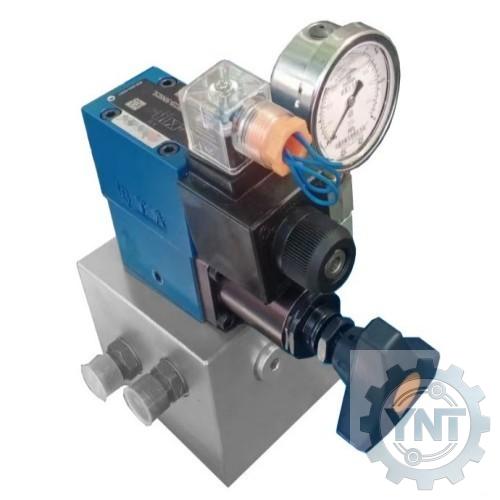

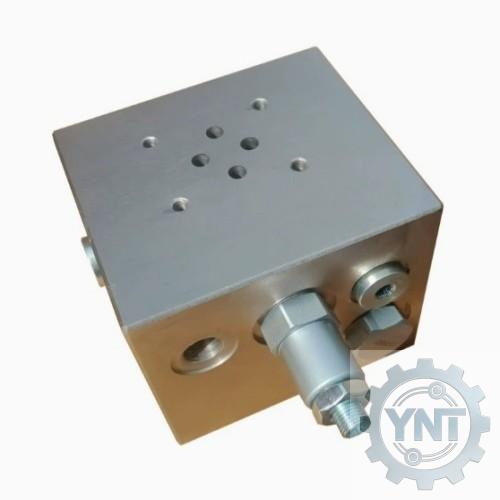

Our custom hydraulic manifold blocks are precision-manufactured core components for hydraulic systems, integrating multiple valve elements, oil circuits and connection ports into a single, compact assembly. Designed and manufactured according to customer-specific requirements, they replace complex pipe connections with integrated flow control, significantly reducing leakage points and improving system efficiency.

Key Features & Advantages

1.Full Customization Capacity:e provide one-stop customization services including circuit design, port configuration, material selection (carbon steel, alloy steel, aluminum alloy), pressure rating and flow requirements. We can manufacture single-valve, multi-valve or complex integrated manifold blocks to match your hydraulic system perfectly.

2.High Precision CNC Manufacturing:Adopting 3-axis/4-axis CNC machining centers, our hydraulic manifold blocks are processed with high dimensional accuracy (±0.01mm~±0.05mm) and excellent surface finish. Internal oil passages are precision drilled to ensure smooth fluid flow, minimize pressure loss and avoid flow obstruction.

3.High Pressure & Leak-proof Performance:All manifolds undergo strict pressure testing, leakage detection and cleaning processes. The structure features reliable sealing and anti-loosening design to ensure stable operation under high pressure, high temperature and long-term continuous working conditions.

4.Wide Application Fields:Our custom hydraulic manifold blocks are widely used in hydraulic power units (HPU), construction machinery, injection molding machines, automation equipment, metallurgical machinery and hydraulic control systems. They simplify system structure, improve maintainability and enhance system stability.

Material & Surface Treatment

• Materials: Carbon steel, alloy steel, stainless steel, aluminum alloy (optional based on pressure and environment)

• Surface Treatment: Phosphating, blackening, oxidation, galvanizing, sandblasting, etc. (to improve corrosion resistance)

Our Service

As a professional hydraulic manifold manufacturer, we offer complete services from drawing design, 3D simulation, sample processing to mass production and quality inspection. We are committed to providing customers with high-precision, cost-effective custom hydraulic manifold block solutions to meet your project performance and delivery needs.
