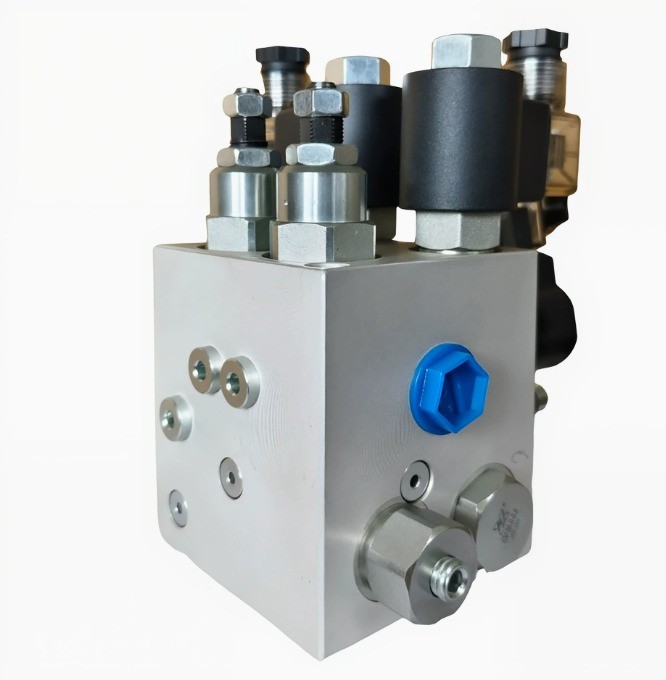

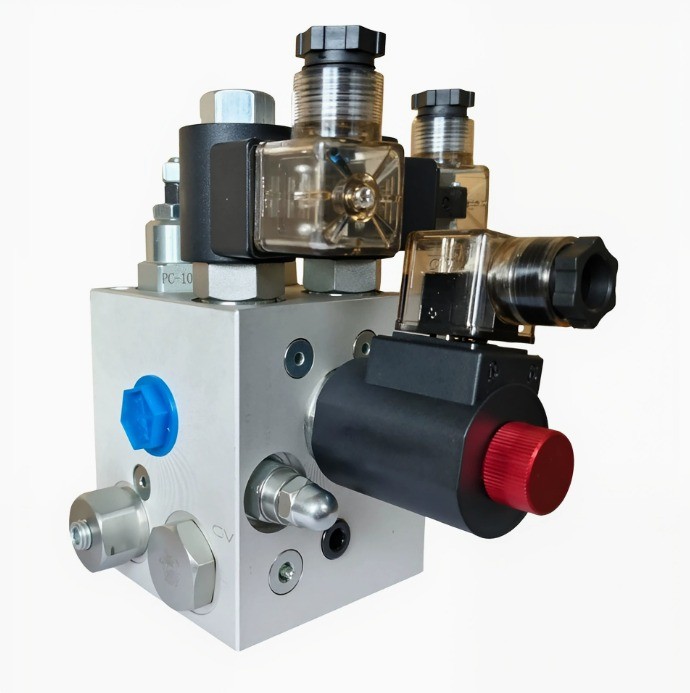

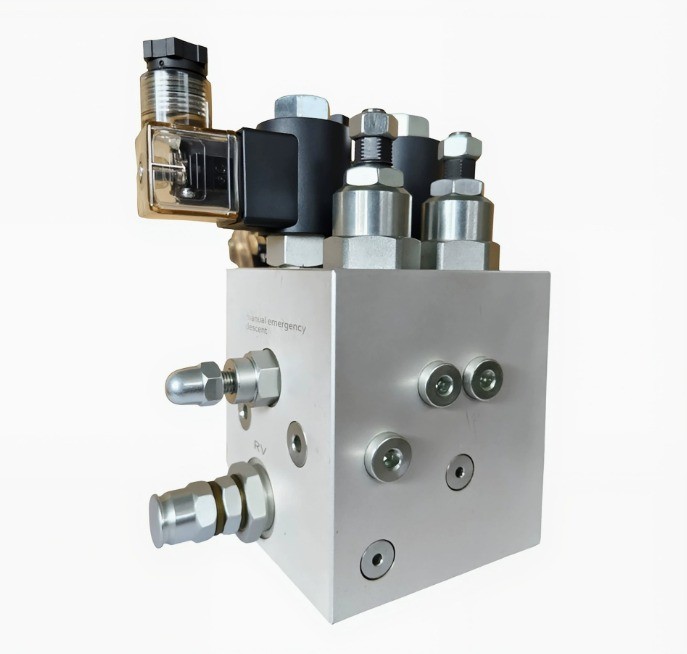

Integrated Hydraulic Manifold with Solenoid Valves

This integrated hydraulic manifold is a high-precision, pre-assembled control solution designed to centralize fluid flow regulation in hydraulic systems. The unit combines high-quality solenoid valves, check valves, and port connections into a single compact aluminum block, eliminating the need for external piping and complex on-site assembly. With precise internal flow passages, it ensures efficient, reliable, and leak-free operation in a lightweight yet robust package, suitable for a wide range of industrial and mobile hydraulic applications.

Key Features  Advantages

Pre-assembled & Ready-to-Use：All components (solenoid valves, check valves, ports) are factory-installed and tested, saving significant installation time and labor costs.

Precision Machining：CNC-machined with tight tolerances to ensure perfect valve seating and smooth fluid flow, minimizing pressure loss and ensuring consistent performance.

Space-Saving  Compact Design：Consolidates multiple control functions into one block, reducing the overall footprint of the hydraulic system and simplifying equipment integration.

Leak-Proof Performance：Eliminates external piping and connections between individual components, drastically reducing the risk of fluid leaks and improving system safety.

Lightweight  Durable：Constructed from high-strength aluminum alloy with anti-corrosion treatment, offering excellent strength-to-weight ratio and longevity in harsh environments.

Fully Customizable：Available with different numbers of solenoid valves, port configurations, and pressure ratings to match your specific hydraulic schematic requirements.

Typical Specifications

Applications

• Compact hydraulic power units (HPUs)

• Industrial automation machinery

• Testing rigs and experimental equipment

• Mobile machinery and equipment

• Any hydraulic system requiring compact, multi-point control

Why Choose Us

We are a professional manufacturer of custom hydraulic components, specializing in the design and production of high-precision manifolds. Every manifold undergoes strict pressure testing and quality inspection to ensure leak-free performance and reliability. Contact us today to discuss your project needs and provide us with your hydraulic schematic for a custom quote!
