Custom Hydraulic Hoses with Fittings

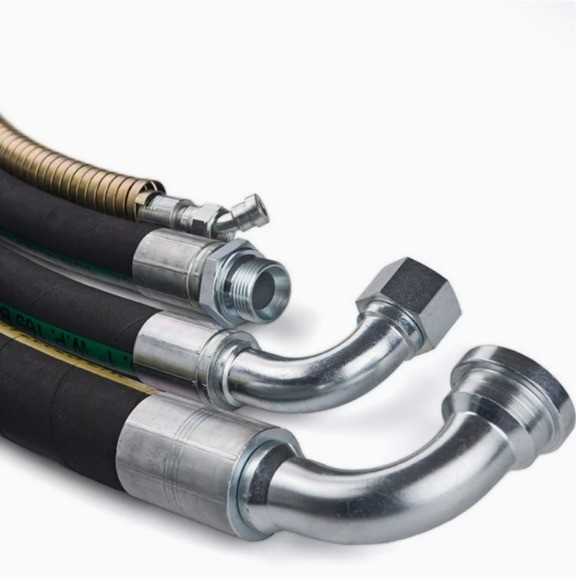

Our custom hydraulic hose assemblies are engineered for reliable high-pressure fluid transfer in demanding industrial, construction, and mobile machinery applications. Each assembly combines premium rubber hydraulic hose (SAE 100 R1, R2, R12, etc.) with precision-crimped steel fittings (JIC, ORFS, BSP, flange, elbow types) to ensure leak-free performance, high pressure resistance, and long service life. Designed to withstand extreme temperatures, abrasion, and vibration, these hoses deliver consistent power transmission for excavators, cranes, hydraulic power units, and more. We offer full customization in size, length, fitting type, and pressure rating to match your exact system requirements.

Key Features

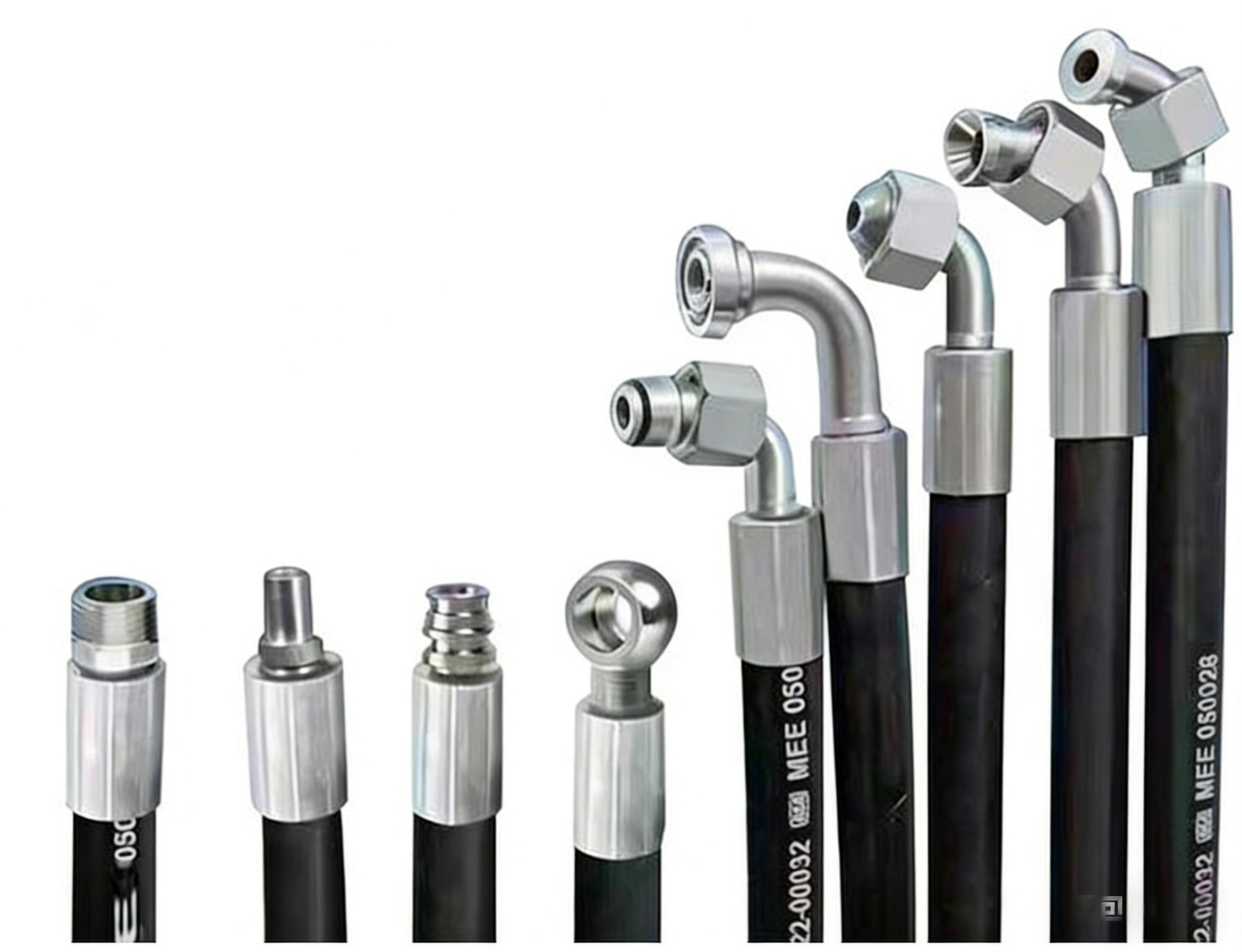

✅ Customizable Assemblies: Tailor-made hose lengths, sizes (1/4" to 2"), and fitting configurations (elbow, straight, flange, JIC, BSP, ORFS) for any system.
✅ High Pressure Resistance: Meets SAE 100 standards (R1, R2, R12, etc.), working pressure up to 4000 PSI, with burst pressure 4x rated pressure.
✅ Durable Construction: Abrasion-resistant rubber cover, oil-resistant inner tube, reinforced steel wire braiding/spirals for long service life.
✅ Leak-Free Connections: Precision crimped steel fittings (zinc-plated for corrosion resistance) ensure tight, reliable seals under high vibration.
✅ Wide Application: Ideal for excavators, loaders, cranes, agricultural machinery, hydraulic power units, marine equipment, and industrial automation systems.

Common Specifications

Standard	SAE 100 R1, R2, R12, DIN EN 853/857
Hose Size	1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Working Pressure	160-400 bar (2320-5800 PSI)
Fitting Type	JIC, ORFS, BSP, NPT, flange, elbow (45°/90°), straight
Material	Hose: Nitrile rubber + steel wire reinforcement; Fittings: Carbon steel (zinc-plated)
Temperature Range	-40°C to +100°C (-40°F to +212°F)

We provide one-stop customization service for hydraulic hose assemblies:

You share your application, working pressure, size, and fitting requirements.
Our engineering team reviews and provides a quote & design solution within 24 hours.
We produce, test (pressure testing, leak testing), and deliver your custom hoses with full quality certification.
