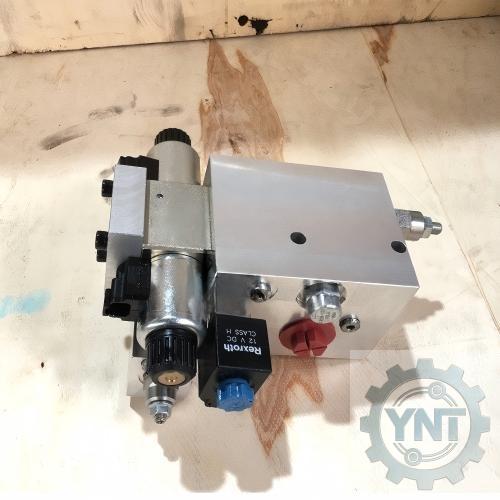

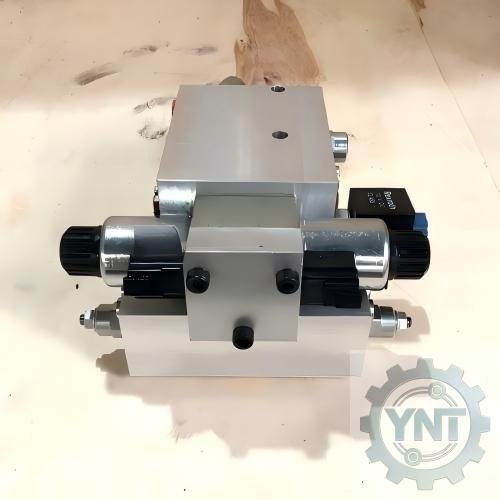

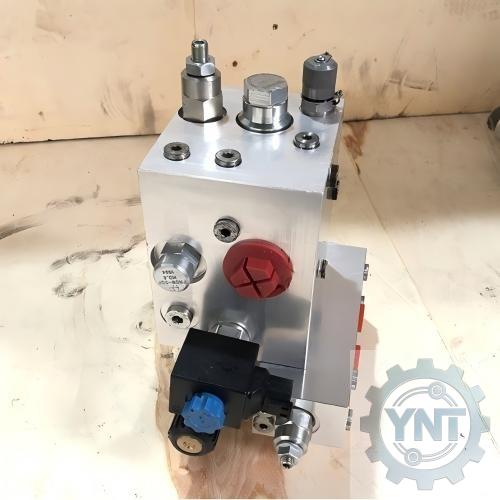

Custom Hydraulic Valve Manifold

A hydraulic valve manifold is a high-precision, integrated hydraulic control component that centralizes multiple directional valves, relief valves, check valves, and proportional valves into a single compact valve block. Manufactured from high-strength aluminum alloy or steel, it replaces complex external piping with internal flow passages, minimizing leakage points, reducing installation space, and improving system efficiency and reliability. Widely used in construction machinery, industrial equipment, and mobile hydraulics, it supports fully customized design to match your system’s pressure, flow, and functional requirements.

Core Product Advantages

Compact Space-Saving Design：Centralizes multiple valves (relief, check, solenoid, proportional) into one aluminum block, eliminating bulky external piping and reducing installation footprint by up to 60%. Ideal for equipment with limited space.

Reduced Leakage Enhanced Reliability：Precision CNC-machined internal flow passages minimize connection points, drastically lowering the risk of hydraulic leaks and improving system stability under high pressure and frequent cycling.

Fully Customizable Hydraulic Circuits：Tailored flow paths, pressure settings, and valve configurations to match your exact system logic, including series/parallel circuits, multi-action control, and safety protection functions.

High Pressure Wide Compatibility：Available in high-strength aluminum alloy (standard) or carbon steel, supporting working pressures up to 35MPa and flows from 10L/min to 300L/min. Compatible with mineral, synthetic, and biodegradable hydraulic fluids.

Easy Installation Maintenance：Modular design allows for quick assembly, simplified troubleshooting, and easy replacement of individual valve components, reducing equipment downtime.

Common Applications

Construction machinery: excavators, cranes, aerial work platforms, loaders
Industrial equipment: hydraulic power units, presses, injection molding machines, test benches
Mobile hydraulics: sanitation trucks, agricultural machinery, mining equipment, material handling vehicles
Marine offshore hydraulic systems
Specialized machinery: automated production lines, robotics, and custom hydraulic systems
Post-Sale Support
We provide installation guidance, technical support, and a 12-month warranty on all custom manifolds, ensuring long-term reliable performance.
Customization Process
Requirement Gathering: Share your hydraulic system parameters, schematics, and installation requirements.
Design Quotation: Our engineers create a 3D model and detailed quotation based on your needs.
Drawing Confirmation: You review and approve the final design drawings and specifications.
Production Machining: Precision CNC machining, valve assembly, and surface treatment.
Testing Quality Control: Pressure, flow, and functional testing to verify performance.
Delivery After-Sales: Shipment with installation instructions and ongoing technical support.
