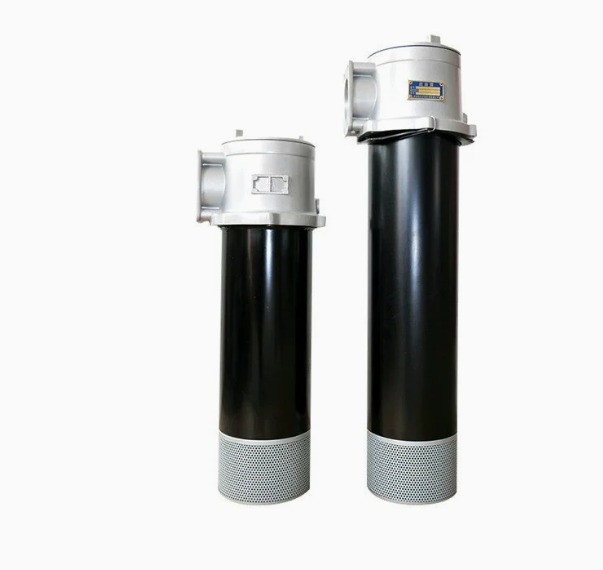

Hydraulic Suction Line Filter

Our hydraulic suction line filter is a critical pre-filtration component for hydraulic systems, designed to be installed directly at the suction port of hydraulic pumps inside hydraulic oil tanks. It effectively removes large-particle contaminants, metal chips and debris from hydraulic oil before it enters the pump, preventing pump wear, cavitation, jamming and costly system failures. As the first line of defense for hydraulic systems, it ensures the long-term stable operation of hydraulic pumps and other core components, extending the service life of the entire hydraulic system.

Key Features

1. Source Protection for Hydraulic Pumps: Installed at the pump suction port, it blocks large impurities from entering the pump, effectively avoiding pump wear, cavitation and damage, reducing maintenance costs.

2. Large Flow Area & Low Pressure Loss: Optimized mesh/filter element structure provides large flow area, minimizing pressure drop at the suction side, ensuring sufficient oil supply to the pump and preventing pump cavitation.

3. Robust & Durable Construction: High-strength filter housing with corrosion-resistant coating, combined with high-quality stainless steel strainer/precision filter element, suitable for harsh industrial environments.

4. Anti-Cavitation Design: Streamlined flow channel and large filter area ensure stable oil suction, eliminating vacuum and cavitation risks during pump operation.

5. Easy Installation & Maintenance: Compact tank-mounted design, simple disassembly and assembly, convenient for on-site installation and regular filter element cleaning/replacement.

6. Dual Filtration Options: Available with coarse strainer (for pre-filtration of large particles) or precision filter element (for higher filtration requirements), meeting different system needs.

7. Built-in Safety Design: Optional bypass valve to ensure continuous oil supply to the pump in case of filter clogging, preventing system shutdown.

Technical Advantages

• Complies with international hydraulic filtration standards, ensuring reliable and stable filtration performance.

• Customizable specifications (flow rate, connection size, filtration precision, housing material) to match different hydraulic pump and system requirements.

• Compatible with various hydraulic oils, lubricating oils and industrial fluids.

• Multiple model options to fit different hydraulic tank sizes and pump flow rates.

• Long service life, reducing the frequency of filter replacement and system downtime.

Application Scenarios

• Construction machinery: Excavators, loaders, cranes, concrete pumps, road rollers, etc.

• Industrial hydraulic systems: Hydraulic stations, hydraulic presses, injection molding machines, machine tools, etc.

• Metallurgical & mining equipment: Steel rolling mills, mining machinery, lifting equipment, etc.

• Other industrial fields: Shipbuilding, petroleum, chemical industry, agricultural machinery, etc.

Product Structure

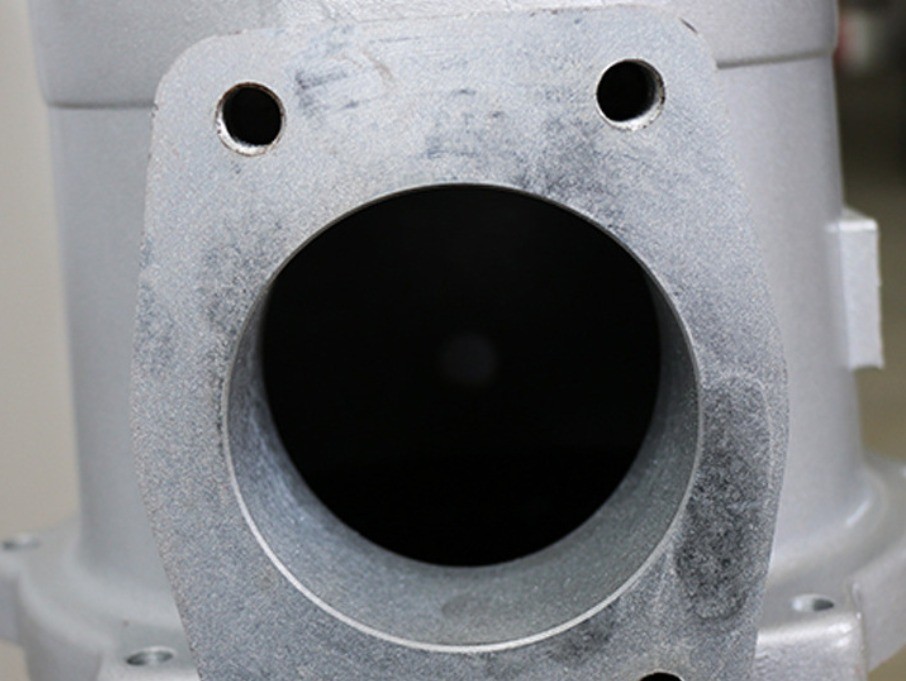

• Filter head: High-strength aluminum alloy/cast iron structure, with oil inlet/outlet and optional bypass valve interface.

• Filter housing: Corrosion-resistant cylindrical structure, with optional black/gray coating, pressure-resistant and durable.

• Filter element/strainer: High-quality stainless steel mesh or synthetic fiber filter element, with large filtration area and high dirt holding capacity.

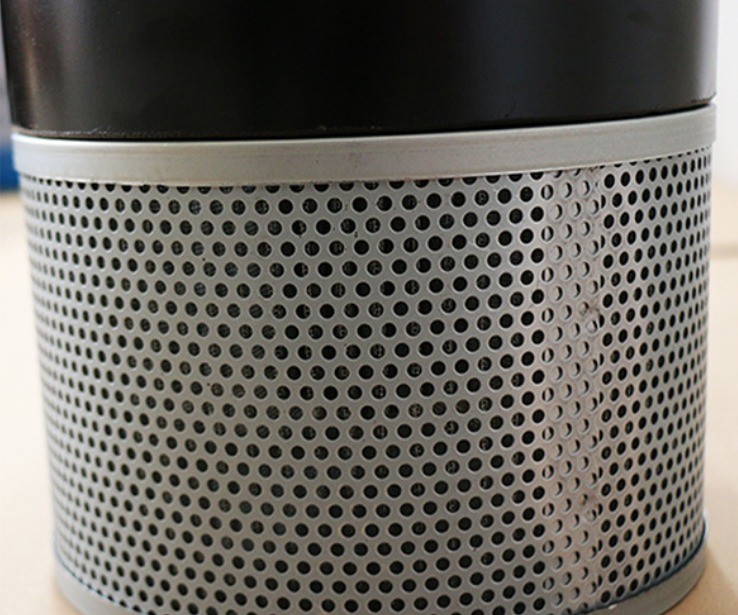

• Bottom protective screen: Prevents large debris from entering the filter, extending the service life of the filter element.

Maintenance Tips

• Regularly inspect the filter element/strainer for clogging; clean or replace it immediately when pressure drop exceeds the standard.

• When cleaning the filter element, use compressed air to blow from the inside out, or rinse with clean hydraulic oil to avoid damage.

• Select the appropriate filtration precision according to the hydraulic pump and system requirements to ensure the best protection effect.

• Regularly check the filter housing and connections for leaks to ensure system safety.

• Replace the filter element regularly according to the working environment and system usage to maintain stable filtration performance.
