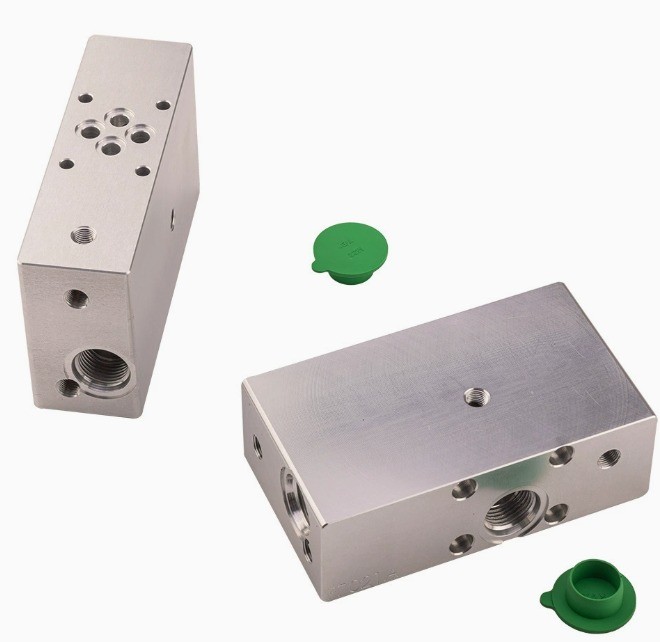

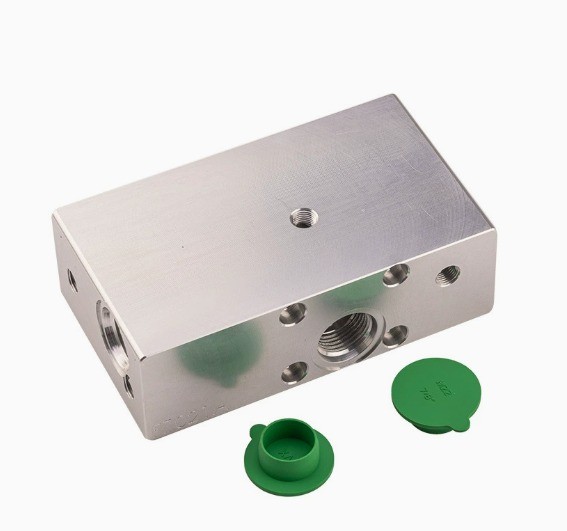

Aluminum Hydraulic Manifold Block

This CNC-machined aluminum hydraulic manifold block is a high-precision fluid control component engineered for custom hydraulic systems. Manufactured from high-strength aluminum alloy with tight machining tolerances, it features precisely drilled internal flow passages and standard mounting ports for integrating valves, pumps, and actuators. The manifold eliminates complex external piping, reduces potential leak points, and ensures efficient flow distribution, making it ideal for hydraulic power units, industrial machinery, and automation equipment.

Key Features & Advantages

✅ High-Precision CNC MachiningManufactured with advanced CNC technology, ensuring accurate flow passages, tight tolerances, and smooth fluid flow with minimal pressure loss.

✅ Lightweight & Durable Aluminum ConstructionMade from high-strength aluminum alloy, offering excellent corrosion resistance, high strength-to-weight ratio, and suitability for various hydraulic fluids.

✅ Customizable Flow DesignInternal passages can be custom-drilled according to your hydraulic schematic, supporting single or multi-circuit configurations.

✅ Reduced Leak PointsEliminates complex external piping and fittings, significantly lowering the risk of fluid leaks and improving system reliability.

✅ Easy IntegrationStandard mounting ports allow quick installation of solenoid valves, check valves, and other components, simplifying system assembly.

✅ Cost-Effective SolutionReduces material and labor costs associated with custom piping, while offering long service life and low maintenance requirements.

Typical Specifications

Applications

• Hydraulic power units (HPUs)

• Industrial automation machinery

• Mobile and compact hydraulic systems

• Test rigs and experimental equipment

• Any custom hydraulic system requiring centralized flow control

Why Choose Us?

As a professional manufacturer of custom hydraulic components, we specialize in CNC-machined manifold blocks tailored to your exact specifications. Every block undergoes rigorous inspection to ensure dimensional accuracy and pressure integrity. Contact us today with your hydraulic schematic for a custom design and quote!
