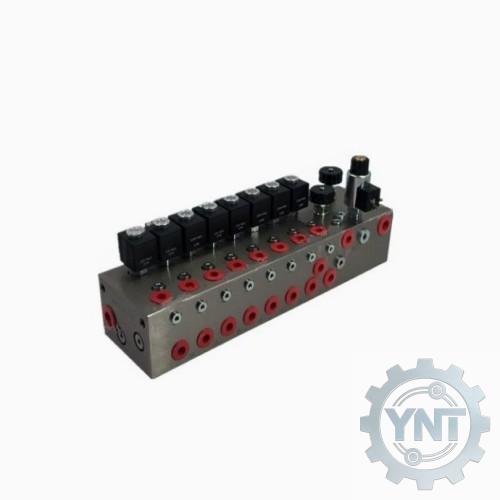

Load Sensing Electro-hydraulic Hybrid Proportional Multi-way Valve

Load Sensing Electro-hydraulic Hybrid Proportional Multi-way Valve

This load sensing electro-hydraulic hybrid proportional multi-way valve adopts an integrated manifold block design, integrating load-sensing pressure compensation, electro-hydraulic proportional control and manual emergency adjustment functions. Solenoid directional valves, pressure relief regulating valves and flow control assemblies are all built in one block. Customizable with freely combined valve sections, it can synchronously control multiple hydraulic actuators. Each circuit features independent load compensation without mutual interference, achieving stepless precise flow regulation. Widely applied to snow removal equipment, sanitation machinery, construction machinery and truck-mounted hydraulic attachments. Full customization is available for voltage, flow rate, valve sections, port specifications and installation dimensions. With energy-saving, low-noise, fast response and anti-pollution durable performance, it greatly simplifies the overall hydraulic pipeline layout and reduces equipment assembly & maintenance costs.

Load Sensing Energy-saving System：
Built-in load sensing pressure compensation structure distributes hydraulic flow on demand. Automatic unloading under no load reduces power loss, equipment fuel consumption and heat generation.
Dual Control: Electro-hydraulic Proportional + Manual：
Standard electro-proportional solenoid control supports remote operation. Equipped with manual emergency knobs to adjust flow when power or electric control fails, ensuring continuous machine operation.
Integrated Compact Manifold Block：
Multi-way valve, pressure regulating valve and solenoid valve are integrated in one machined block, eliminating complicated external pipelines, saving installation space and reducing oil leakage points.
Independent Circuits Without Interference：
Each circuit is equipped with an independent pressure compensator. When multiple functions operate simultaneously, every actuator runs at stable speed regardless of load changes, delivering smooth and precise movement.
Full Customization Supported：
Customizable items include valve sections (2~10 sections), inlet & outlet port sizes, control voltage (12V/24V DC), max single-circuit flow, pressure rating and mounting holes, matching all truck-mounted and construction hydraulic equipment.
