N-Series Snow Sweeper Brush

1. Product Overview

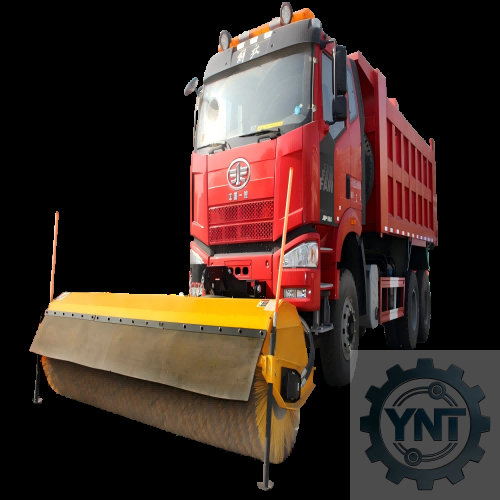

The DHGQ-01B-2745/3050/3355/3660N snow sweeper brush belongs to our N (Normal) Economy Series, which delivers reliable snow removal performance with cost-effectiveness as the core advantage.

Featuring high rotating speed and strong torque, this snow brush achieves excellent cleaning results and high cleanliness. It is widely used for removing snow, sand and gravel on highways, urban roads, expressways and airport pavements. Well-received by customers across China after long-term field operation in winter snow removal projects.

Four working widths are optional: 2745mm, 3050mm, 3355mm and 3660mm. The brush disc diameter is 813mm, with a rotating speed over 240 r/min. It can clear snow up to 150mm deep. The hourly working coverage ranges from 35,000 to 48,000 square meters depending on different brush widths.

2. Compatible Chassis

This series snow brush is compatible with sanitation trucks, cargo trucks and dump trucks with a gross vehicle weight above 16 tons:

• 2745mm / 3050mm models: Match 16–18 ton chassis

• 3355mm / 3660mm models: Match chassis of 25 tons and above

3. Core Advantages

3.1 High Cost Performance:

   Meets all operational requirements while cutting procurement costs for clients. Working efficiency reaches 35,000~48,000 ㎡ per hour.

3.2 Ultra-durable Brushes:

   The wear resistance is 2.5 times higher than similar domestic products.

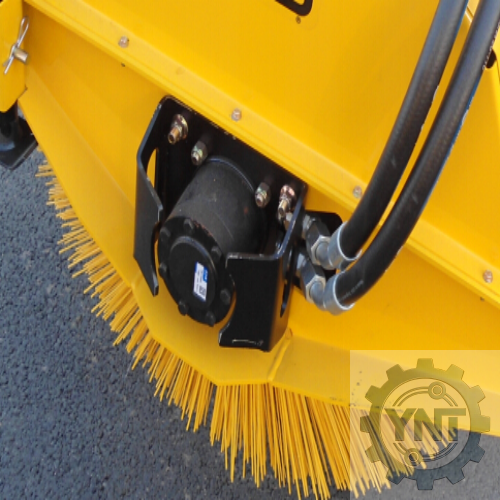

3.3 Built-in Dual Hydraulic Motors:

    Direct drive design ensures high power transmission efficiency. The built-in structure improves operational safety.

3.4 Integrated Valve Block System:

   Simplifies daily maintenance and repair work.

3.5 Precision Balancing Technology for Brush Discs:

   Optimizes the mass balance of the main shaft, effectively avoiding shaft distortion and abnormal vibration during operation.

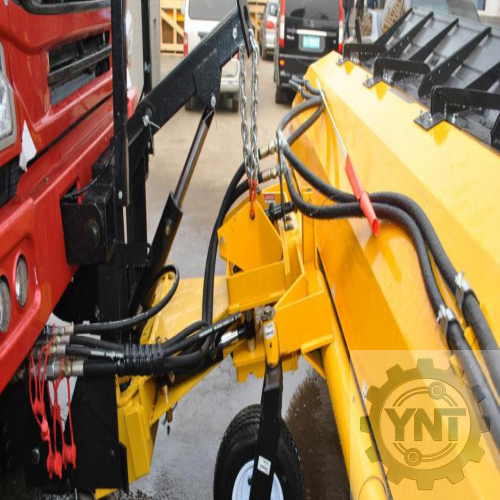

3.6 Patented Quick Coupling System:

    Full installation and disassembly can be completed within 5 minutes; compatible and interchangeable with snow plows.

3.7 Standardized Production:

   Manufactured with tooling fixtures to guarantee consistent quality across all batches.

3.8 Strict Factory Testing:

   Equipped with a complete testing platform; all units pass full performance inspections before delivery.

4. Main Technical Parameters
