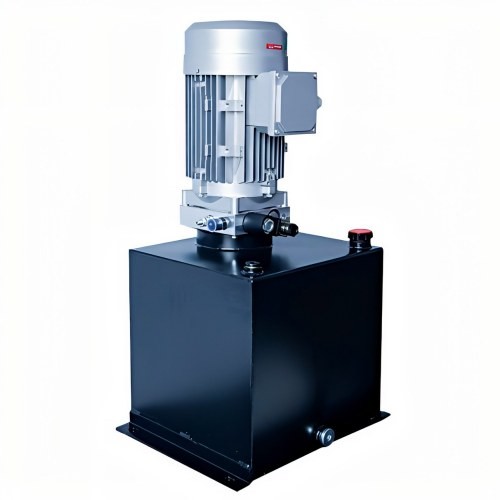

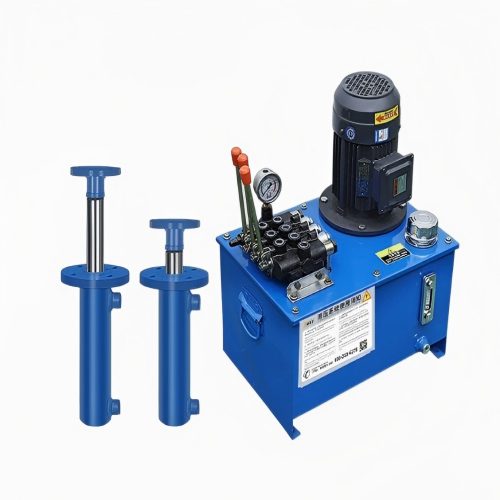

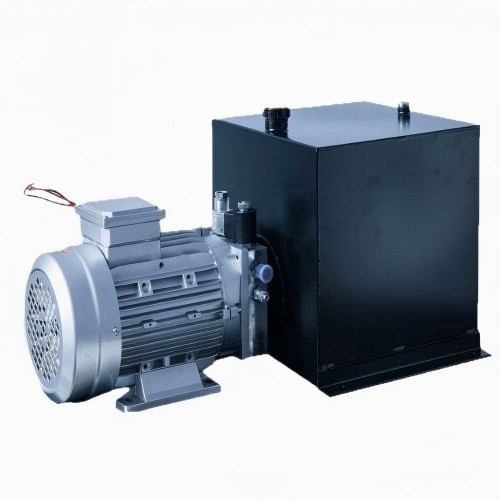

Hydraulic Power Unit (HPU

Our hydraulic power unit (HPU) is the heart of hydraulic systems, integrating key components such as AC/DC motors, hydraulic pumps (gear pump, vane pump, piston pump), oil tanks, control valves, filters, coolers and electrical control systems. It provides pressurized hydraulic oil to drive hydraulic cylinders, motors, valves and other actuators, realizing linear or rotary motion control of mechanical equipment. With a modular design, we support full customization of parameters including flow rate, working pressure, motor power, oil tank capacity, operating voltage and control mode, to meet the unique power needs of different hydraulic systems and application scenarios. Whether for standard industrial equipment or special engineering machinery, our hydraulic power units deliver reliable, efficient and stable power output, and are widely recognized in construction machinery, lifting platforms, sanitation vehicles, automotive maintenance, industrial automation and other industries.

Key Features

1. Customizable Core Parameters

• Flow Rate: Customizable from 3L/min to 200L/min, meeting the speed requirements of different actuators.

• Working Pressure: Adapt to low/medium/high pressure systems, with pressure ranging from 3MPa to 42MPa, suitable for various load conditions.

• Motor Configuration: Support AC motor (220V/380V/400V) and DC motor (12V/24V/48V), with power from 0.5kW to 15kW, adapting to different power supply environments.

• Tank Capacity: Custom oil tank volume from 5L to 200L, with anti-rust treatment, ensuring oil storage and heat dissipation.

  High Efficiency & Reliable Pump Selection

• Gear Pump: Low cost, high reliability, suitable for general industrial low-pressure systems.

• Vane Pump: Low noise, stable flow, suitable for precision equipment with low noise requirements.

• Piston Pump: High pressure, high efficiency, suitable for heavy-duty construction machinery and high-load hydraulic systems.

  Complete Protection & Safety Design

• Equipped with pressure relief valve, one-way valve, filter and liquid level gauge to protect the system and facilitate maintenance.

• Optional heat exchanger for high-load or continuous working systems to prevent overheating.

• Electrical protection functions such as overload protection and short circuit protection ensure safe operation.

  Compact & Integrated Structure

• Integrated layout, small footprint, easy installation and maintenance, suitable for limited space equipment.

• Standard interface design, compatible with various hydraulic valves, cylinders and pipelines, strong expandability.

  Strong Environmental Adaptability

• Adopt anti-rust, anti-corrosion and dust-proof design, suitable for outdoor, dusty, high temperature and other harsh working environments.

• Customizable oil type (mineral oil, anti-wear hydraulic oil, water-glycol fluid) to meet different media requirements.

Custom Machining & Integration Services

We provide one-stop custom solutions for hydraulic power units, covering design, machining, assembly and testing:

• Custom Component Matching

• Custom pump type (gear/vane/piston), pump displacement and speed matching.

• Custom motor power, voltage and frequency (50Hz/60Hz) according to customer needs.

• Custom tank size, material (carbon steel/stainless steel) and surface treatment (spray paint/galvanized).

• Custom Control System

• Manual control, electromagnetic control, hydraulic pilot control, PLC automatic control and other modes.

• Custom sensor configuration (pressure sensor, liquid level sensor, temperature sensor) for real-time monitoring.

• Custom remote control and communication functions (CAN bus, Modbus) for intelligent systems.

• Custom Special Functions

• Add load sensing, pressure compensation, energy recovery functions to improve system efficiency.

  Custom explosion-proof, explosion-proof and anti-corrosion versions for special industries (petroleum, chemical engineering).

• Custom integrated valve block design to reduce pipeline loss and improve system stability.

• Custom Batch & Delivery

• Support small batch trial production and mass production, with flexible lead time.

• Provide complete technical documents (installation manual, operation manual, maintenance manual) and after-sales service.

Technical Advantages

• Professional Design Team: Rich experience in hydraulic system design, can provide professional scheme optimization and parameter calculation according to actual working conditions.

• Precision Manufacturing: Adopt CNC machining technology for key components, ensuring high dimensional accuracy and assembly quality.

• Strict Quality Control: Each hydraulic power unit undergoes strict commissioning and performance testing before delivery, including pressure test, flow test, noise test and safety test, complying with ISO, CE and other international standards.

• Cost-Effective Solutions: Optimize the production process to provide high-quality customized products at competitive prices, reducing customer's overall equipment cost.

Application Scenarios

• Construction Machinery: Excavators, loaders, cranes, concrete pumps, aerial work platforms, etc.

• Lifting & Handling Equipment: Scissor lift tables, hydraulic lifts, forklifts, cargo lifts, bridge cranes, etc.

• Sanitation & Special Vehicles: Garbage trucks, road sweepers, fire trucks, hook lift trucks, etc.

• Industrial Equipment: Hydraulic presses, injection molding machines, machine tools, automation production lines, etc.

• Other Fields: Petroleum, chemical engineering, mining, marine equipment, new energy equipment, etc.

Product Structure

• Motor: AC/DC motor, providing power input, with high efficiency and long service life.

• Hydraulic Pump: Converting mechanical energy into hydraulic energy, different types for different pressure and flow requirements.

• Oil Tank: Storing hydraulic oil, realizing oil circulation and heat dissipation, with liquid level gauge and oil filler cap.

• Control Valves: Including pressure relief valve, one-way valve, directional control valve, etc., controlling the flow, pressure and direction of hydraulic oil.

• Filter: Removing impurities in hydraulic oil, protecting the pump and valve components, extending service life.

• Cooler: Optional air-cooled or water-cooled radiator, reducing oil temperature to ensure stable system operation.

• Electrical Control System: Including relay, contactor, PLC, sensor, etc., realizing automatic control and protection of the hydraulic power unit.

Custom Order Process

Inquiry & Requirement Confirmation: Provide product application scenarios, required flow, pressure, motor power, tank capacity, control mode and other parameters.

Scheme Design & Quotation: Our technical team designs the hydraulic system scheme, calculates parameters and provides a detailed quotation.

Sample Confirmation: Produce samples for customer inspection and commissioning, adjust the scheme according to feedback.

Mass Production: After sample confirmation, arrange mass production, strictly control the quality in the production process.

Inspection & Delivery: Conduct full inspection of the products, provide quality certificates and delivery documents.

After-sales Service: Provide installation guidance, commissioning support and long-term maintenance services.
