Pure Copper Enameled Coil Industrial Stepping Motor

Pure Copper Enameled Coil Industrial Stepping Motor

Industrial‑grade two‑phase stepper motor fitted with pure‑copper enameled coil for stable operation and quick response. Epoxy‑resin sealed rotor resists moisture, high‑heat and corrosion. Accurate open‑loop positioning and strong low‑speed torque. Custom service available for automated machinery, laser cutters and 3D printers.

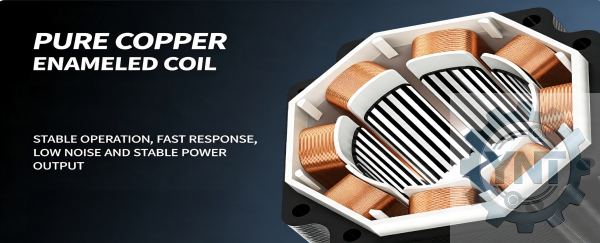

This two‑phase stepper motor adopts square aluminum‑alloy housing for excellent heat dissipation and standard square flange mounting base. Its stator is wound by high‑purity enameled‑copper coil for fast response, stable power output and low running noise.

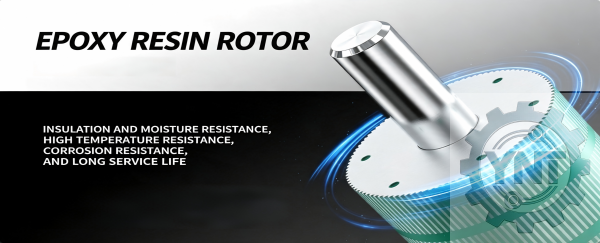

The rotor is fully encapsulated by epoxy‑resin, featuring moisture‑proof, high‑temperature resistant, corrosion‑proof property to avoid permanent‑magnet shedding.

Controlled by pulse signal, the stepping motor delivers precise angle positioning without accumulated error and tolerates frequent start‑stop and forward‑reverse rotation. Customizable shaft diameter, motor length and outlet mode. Compatible with most mainstream stepper motor drivers for CNC, laser machinery, 3D‑printer and automated‑production‑line transmission.
