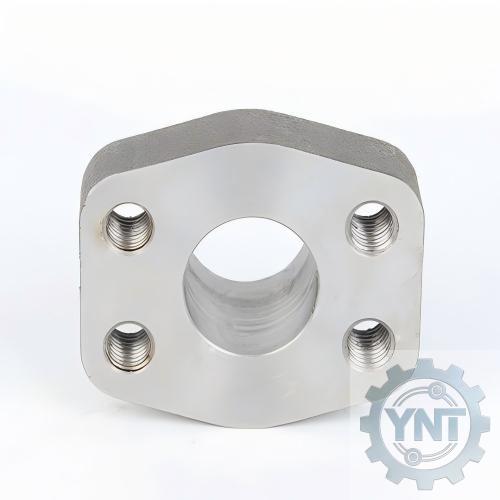

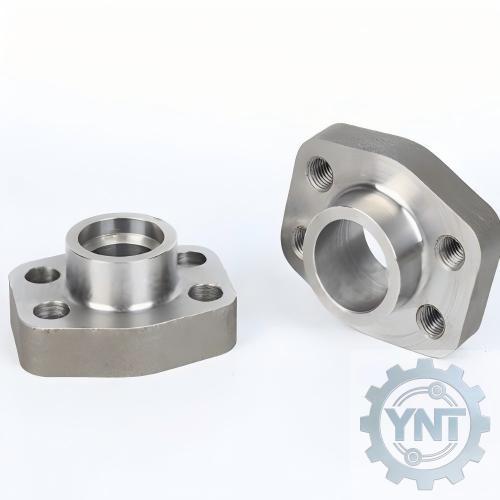

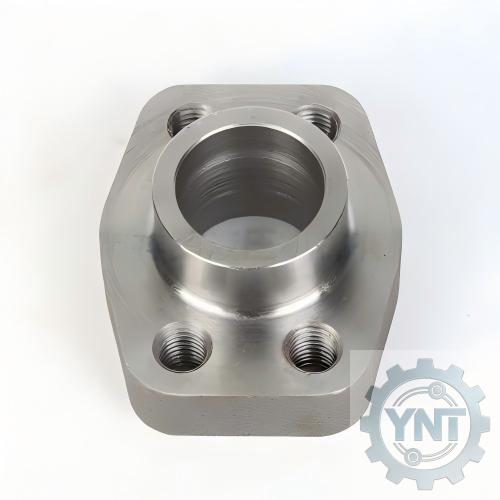

Custom Hydraulic Socket Weld Diamond Flange

Key Features & Customization Capabilities

1.High-Pressure Leak-Proof Design:The diamond flange features a precision-machined socket weld bore and four symmetric mounting holes, ensuring perfect alignment and uniform sealing force. Manufactured from high-strength carbon steel or alloy steel, it withstands working pressures up to 350 bar, preventing leaks and ensuring long-term reliability in demanding hydraulic systems.

2.We offer comprehensive customization to match your exact requirements:

• 2-1 Custom Dimensions: Bore size, outer diameter, thickness, and mounting hole positions tailored to your cylinder or manifold specifications.

• 2-2 Thread & Connection Types: Custom internal threads (metric, BSPP, NPT) or socket weld configurations to match your hydraulic components.

• 2-3 Materials: Carbon steel, alloy steel, or stainless steel, with optional heat treatment for enhanced strength and wear resistance.

• 2-4 Surface Treatments: Phosphating, blackening, or plating to improve corrosion resistance and prevent rust in harsh environments.

  3.Precision Machining & Durability:Using advanced CNC machining, our hydraulic diamond flanges are manufactured with tight tolerances (±0.01mm), ensuring smooth surfaces and accurate dimensions. Each flange undergoes rigorous inspection, including dimensional checks and pressure testing, to guarantee compatibility and performance. The robust design withstands vibration, shock loads, and continuous high-pressure operation, making it suitable for construction machinery, industrial presses, and other heavy-duty applications.

  4.Our custom hydraulic diamond flanges are widely used in:

• 4-1 Hydraulic cylinder mounting (end caps, rod ends)

• 4-2 Hydraulic manifold and valve block connections

• 4-3 High-pressure hydraulic system piping

• 4-4 Industrial machinery, construction equipment, and mobile hydraulic systems

Our Custom Process

From your initial specifications, drawings, or application requirements, we provide end-to-end support including design review, prototype manufacturing, testing, and mass production. Our engineering team ensures that every custom hydraulic diamond flange meets your exact dimensional, pressure, and compatibility needs.
